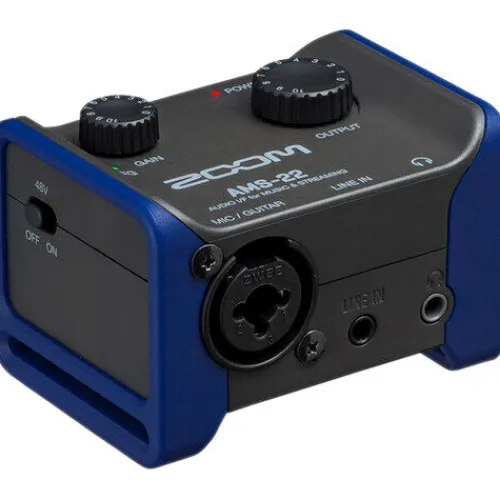

Zoom AMS-22 USB-C Audio Interface

Ideal for solo musicians and content creators on the move, the Zoom AMS-22 is an ultra-compact and user-friendly USB-C audio interface designed for effortless recording and streaming on Mac, Windows, iOS, and Android devices. It features a versatile TRS/XLR combo input, two TRS outputs, a 3.5mm headphone jack, and seamless connectivity, making it a convenient all-in-one solution for capturing high-quality audio anywhere.

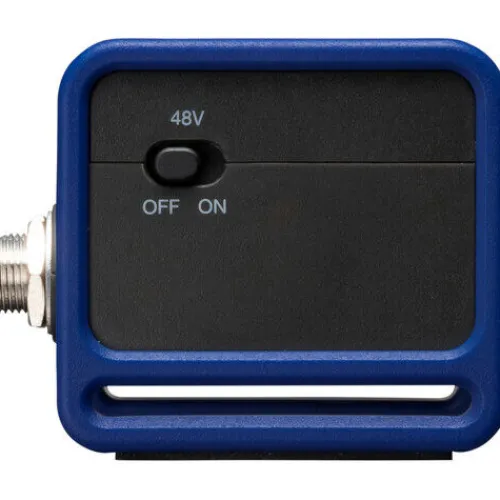

Plug your guitar or microphone into the TRS/XLR input, and power condenser mics by engaging the 48V phantom power switch. Plug stereo music sources into the 3.5mm input jack and monitor via the 3.5mm headphone jack, or connect monitor speakers to the stereo TRS output. The AMS-22 supports 24-bit resolution recordings at a sampling rate up to 96 kHz. The interface operates on bus power from your computer, but can also be powered by an AC power adapter (available separately) if you’re using it with a smartphone or tablet. Direct monitoring and loopback functions make overdubbing and adding music to your streams simple and easy.

Two Inputs and Two Outputs

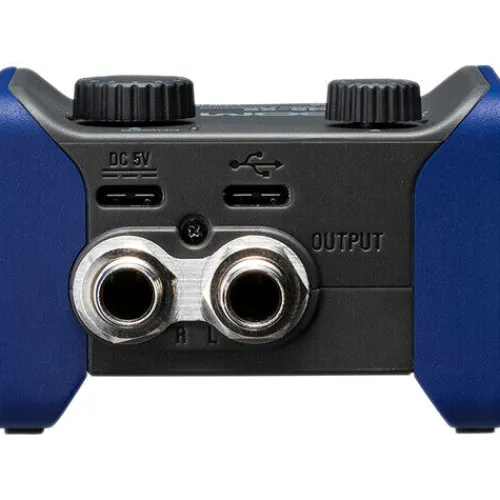

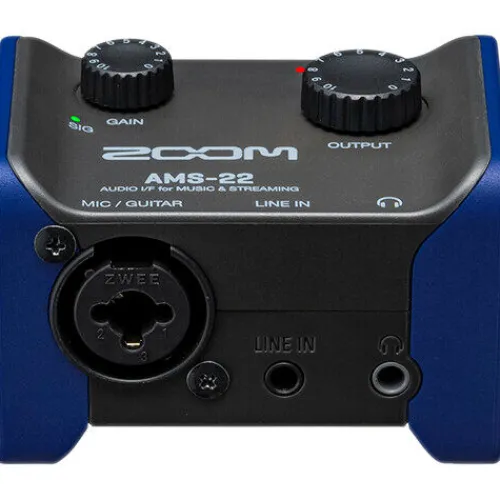

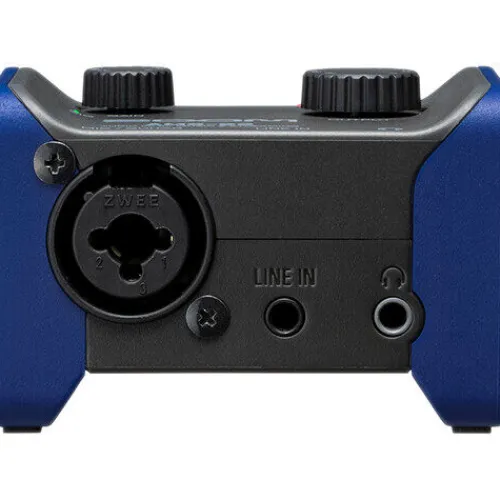

Perfect for mobile recording or streaming, the AMS-22 includes one XLR/TRS combo input, plus a stereo 3.5mm line in. It also includes one 3.5mm headphone output and two TRS outputs for external monitors.

Use for Recording and Streaming

Use the AMS Series on any device thanks to its support for Mac and PC along with iOS and Android devices, and integrate seamlessly with commonly used software, apps, and platforms. In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram, and Patreon. In Music mode, record with software like Adobe Audition, Pro Tools, Cubase, and Garage Band.

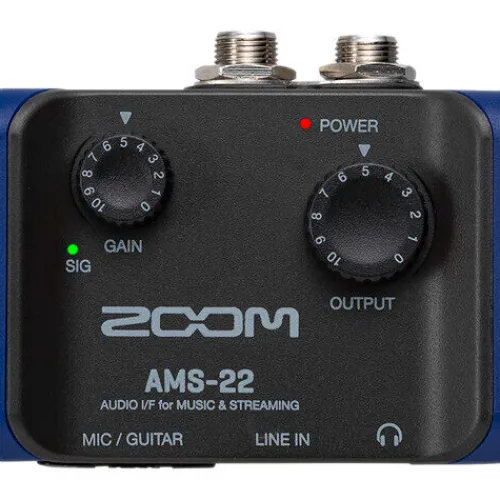

Quick Control

With onboard hardware switches, the AMS-22 is designed to simplify common streaming challenges without the need for additional software.

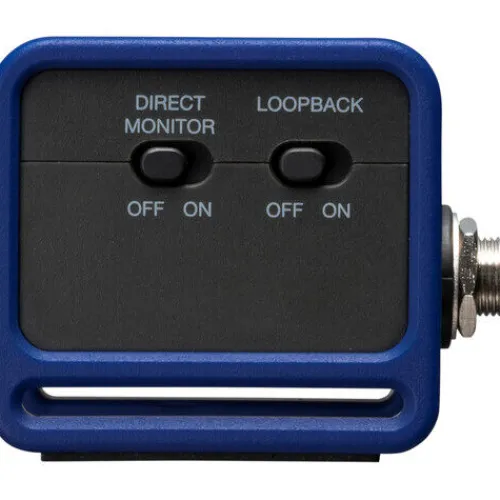

Onboard Monitoring

Use the Direct Monitor Switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software.

Loopback

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.
