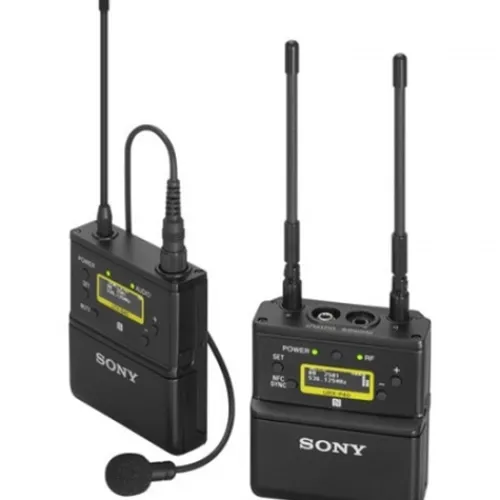

Sony Microphones>UWP-D21/CE42 Camera-Mount Wireless Lavalier Microphone System

Original price was: $1,238.61.Current price is: $160.59.

SKU: SKUVdK2cCBl2J Categories: Audio, Audio By Type, Microphones Tag: Sony Brand: Sony

Description
Reviews (0)

Key Features:

High Quality Sound with Sony Digital Audio Processing
Auto Gain Mode Volume Control
+15 dB Gain Volume Boost Mode for Off-Mic Audio
Line Input
Headphone Output for Monitoring
Monitor Mode for Using a Receiver as an Ear Monitor
Variable Muting Function
Compatibility with Sony WL-800/UWP/UWP-D Series
Receiver Output Level Control
High Visibility OLED Display, ideal for Indoor/Outdoor Use
USB Connector for Power Supply

Digital Audio Processing For High-Quality Sound

Enjoy superior sound quality with Sony’s advanced digital audio processing technology. With improved transient response performance, you can now record direct digital sound with many Sony professional camcorders and Alpha interchangeable lens cameras using the SMAD-P5 Multi Interface MI shoe adaptor. This bypasses A/D and D/A conversion stages, giving you excellent sound quality.

Fast, Easy Frequency Setting

Sony’s uniquely user-friendly NFC SYNC feature allows quick, intuitive secure channel settings between transmitter and receiver.

Seamless Camcorder Integration

Integration with compatible* Sony camcorders (requires SMAD-P5 Multi Interface shoe adaptor) displays audio information such as RF level meter, audio mute status, and transmitter low battery alert in the cameras viewfinder. Via the SMAD-P5, audio signals are transmitted from the receiver to the camera without requiring a cable connection. The wireless receiver can also receive power from the camera, with synchronized power on/off between the camera and receiver for more effective power management.

Light, Compact Design

Reduced system size and weight enable superior mobility in a wide range of applications including news, documentaries, weddings, and remote production. The receiver’s compact size and light weight make it an ideal partner for the use of small camcorders and interchangeable-lens digital cameras.

Digital Dividend Ready “CE42” 638 – 694 Mhz Ver. Suits: Brisbane, Cairns, Sydney, Melbourne, Adelaide, Canberra, Newcastle, Southern Sunshine Coast, Esk, Emerald, Rockhamton, Bunbury, Roma, Grafton, Bendigo, Darwin, Gladstone East, area Operation

NFC SYNC function for quick and easy secure channel setting (IR sync capability with UTX-B40 transmitter from URX-P03, URX-P03D, and URX-S03D receivers)
Channel memory for fast switching between receiver frequencies for two transmitter operation
The transmitter frequency is sent to the receiver for matching multiple receivers to one transmitter
Digital audio interface support with SMAD-P5 Multi-Interface (MI) Shoe Adaptor (option)*

UTX-B40 BODYPACK TRANSMITTER

Antenna Type	1/4 wave length wire antenna
Audio Attenuator Adjustment Range	0 dB to 27 dB (3 dB steps)
Audio Delay	Approx. 0.35 ms
Battery Life*	Approx. 8 hours with an output power of 30 mW (UC, U, CE, LA, CN models) Approx. 10 hours with an output power of 10 mW (J, E, KR models) * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).
Capsule Type	Elect retcon-denser
Carrier Frequencies	14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) // 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) // 42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51) // 90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz // 21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29) // 33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) // 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) // 38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46) // E : 794.125 MHz to 805.875 MHz // BJ : 806.125 MHz to 809.750 MHz // KR : 925.125 MHz to 937.500 MHz
Dimensions	6.3 x 7.3 x 1.9 cm (W / H / D) (excluding antenna)
Directivity	Omni-directional
Display	OLED
Distortion	0.9% or less (–60 dBV, 1 kHz input)
Frequency Response	23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models) 40 Hz to 15 kHz (Typical) (J model)
Input Connector	3.5 mm diameter 3-pole locking mini jack
Operating Temperature	0 °C to 50 °C (32 °F to 122 °F)
Oscillator Type	Crystal-controlled PLL synthesizer
Power Requirements	DC 3.0 V (two LR6/AA-size alkaline batteries) DC 5.0 V (supplied from USB Type-C connector)
Reference Audio Input Level	–60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) +4 dBu (LINE input)
RF Output Power	30 mW/5 mW selectable (UC, U, CE, LA, CN models) 10 mW/2 mW selectable (J, E, KR models)
Signal-To-Noise Ratio	60 dB (–60 dBV, 1 kHz input) // 102 dB (GAIN MODE set to AUTO GAIN, max.) // 96 dB (GAIN MODE set to NORMAL, max.)
Storage/Transport Temperature	-20 °C to +55 °C (–4 °F to +131 °F)
Tone Signal Frequency	In UWP-D compander mode: 32.382 kHz // In UWP compander mode: 32 kHz // In WL800 compander mode: 32.768 kHz
Weight	Approx. 0.083 kg (excluding batteries)

URX-P40 PORTABLE RECEIVER

Analog Audio Output Adjustment Range	-12dB – +12dB (3dB step)
Antenna Type	1/4 wavelength wire antenna (angle-adjustable)
Audio Delay	Approx. 0.35 ms (analog output) Approx. 0.24 ms (digital output)
Audio Output Connector	3.5 mm diameter 3-pole locking mini jack, external connection
Audio Output Level	–60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level) –20 dBFS (external connection, digital output, 0 dB audio output level) –50 dBFS (external connection, analog output, 0 dB audio output level)
Battery Life*	Approx. six hours *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.
Carrier Frequencies	14UC : 470.125 MHz to 541.875 MHz (UHF-TV channels 14 to 25) // 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36) // 42LA : 638.125 MHz to 697.875 MHz (UHF-TV channels 42 to 51) // 90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz // 21CE : 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29) // 33CE : 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40) // 42CE : 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48) // 38CN : 710.025 MHz to 782.000 MHz (UHF-TV channels 38 to 46) // E : 794.125 MHz to 805.875 MHz // BJ : 806.125 MHz to 809.750 MHz // KR : 925.125 MHz to 937.500 MHz
Dimensions	6.3 x 7 x 3.1 cm (W / H / D) (excluding antenna)
Display	OLED
Distortion (T.H.D)	0.9% or less (1 kHz sine wave, 5 kHz modulation)
Frequency Response	23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models) // 40 Hz to 15 kHz (typical) (J model)
Headphone Output Connector	3.5 mm diameter mini jack
Headphone Output Level	Max. 10mW (16-ohm)
Operating Temperature	0 °C to 50 °C (32 °F to 122 °F)
Oscillator Type	Crystal-controlled PLL synthesizer
Power Requirements	DC 3.0 V (two LR6/AA-size alkaline batteries) // DC 5.0 V (supplied from USB Type-C connector)
Reception Type	True diversity method
Signal-To-Noise Ratio	60 dB (1 kHz sine wave, 5 kHz modulation)
Storage/Transport Temperature	–20 °C to +55 °C (–4 °F to +131 °F)
Tone Signal Frequency	In UWP-D compander mode: 32.382 kHz // In UWP compander mode: 32 kHz // In WL800 compander mode: 32.768 kHz
Weight	Approx. 0.131 kg (excluding batteries)

* Specifications subject to change by the manufacturer without notice

Sony UWP-D21 Camera-Mount Wireless Omni Lavalier Microphone System (638 to 694 MHz)
Sony URX-P40 Camera-Mount Wireless Receiver (638 to 694 MHz)
Sony UTX-B40 Wireless Bodypack Transmitter with Omni Lavalier Mic (638 to 694 MHz)
Mic Clip
Windscreen
2 x Belt Clips
Sony SMAD-P4 Shoemount Adapter for URX-P40 Receiver
3.5mm to 3.5mm Output Cable
3.5mm to XLR-M Output Cable
