Sekonic Colour Calibration & Management>Colour Meter C-800 – SpectroMaster

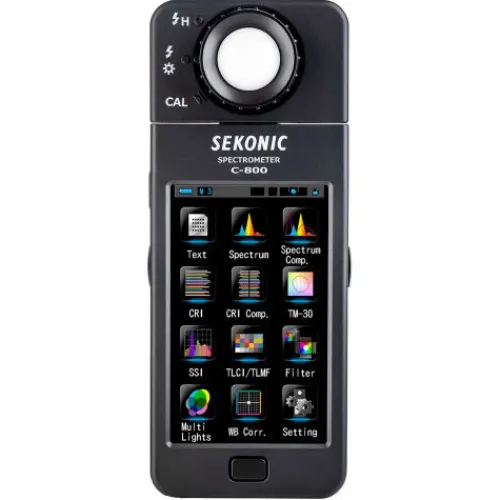

Sekonic Colour Meter C-800 – SpectroMaster

Designed for photographers, videographers, cinematographers, and gaffers, the Sekonic SPECTROMETER C-800 is a powerful field meter that accurately reads nearly any light source-LED, flash, incandescent, HMI, fluorescent, or natural light. Featuring a 4.3″ colour touchscreen and 11 versatile display modes, it provides clear guidance to achieve your desired lighting effects. Its advanced CMOS sensor measures wavelengths in 1nm increments and detects colour spikes, making it especially useful when working with complex or mixed lighting setups.

Perhaps the meter’s most exciting addition is Spectral Similarity Index. Developed by the Sci-Tech Council of the Academy, SSI gives the user the ability to set any light as a standard, or use predefined standards (such as CIE D55), and then gives other lights an SSI score based upon how well they will match. The C-800 also includes TLCI (Television Lighting Consistency Index), TLMF (Television Lighting Matching Factor), and TM-30-15 (Technical Memorandum) in addition to CRI (Colour Rendering Index), which can be measured singularly or in two light comparison mode.

The SPECTROMETER has very impressive accuracy, repeatability, and response specs and a wide range of values in all modes. Flash for example, can be colour analysed with selectable shutter speeds from 1-1/500 sec. Ambient light has a 1.0 to 200,000 lux range (0.09 to 18,600 fc). The intuitive colour touchscreen offers access to the meter’s many functions including a Spectrum graph, CRI, Camera Filter, Lighting Filter, White Balance Compensation, and comparison of multiple lights.

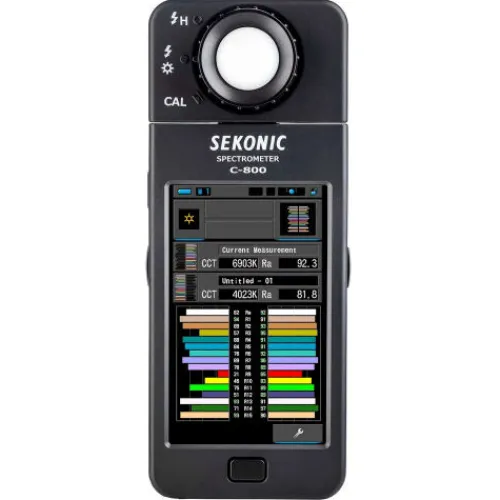

The Text mode screen displays colour temperature, lux or fc as well as colour compensation and light balancing filters. After selecting your preferred colour balance, the Camera Filter and Lighting Filter Screens will display the actual Rosco, Lee, Kodak Wratten, or Fuji filter designations necessary to achieve your targeted colour temperature. CRI also has a dedicated screen that displays standard colour reference values (including R1 thru 15) as a percentage of the light source’s ability to reproduce a colour accurately, as compared to the Ra standard temperature. The Multi Light Screen reads multiple light sources’ colour temperatures as well as light balance and colour compensation recommendations, memorises them, and allows them to be compared.

With its plethora of light-analytic tools, ability to read and compare all types of light and real-world filter solutions, the SPECTROMETER is destined to be a staple on set.

CRI, TLCI, TLMF, TM-30-15, and SSI

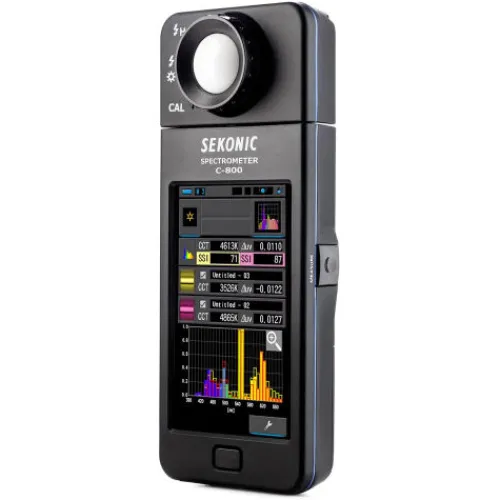

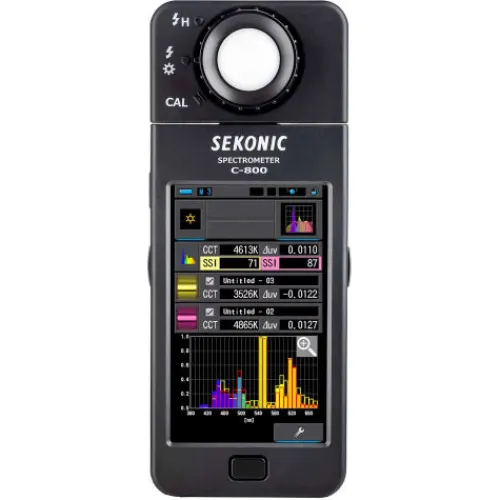

Developed by the Sci-Tech Council of the Academy, SSI (Spectral Similarity Index) gives the user the ability to set any light as a standard, or use predefined standards (such as CIE D55), and then gives other lights an SSI score based upon how well they will match. The C-800 also includes TLCI (Television Lighting Consistency Index), TLMF (Television Lighting Matching Factor), and TM-30-15 (Technical Memorandum), in addition to CRI (Colour Rendering Index) which can be measured singularly or in two light comparison mode.

Match Light Sources by Measuring x, y and Hue Saturation

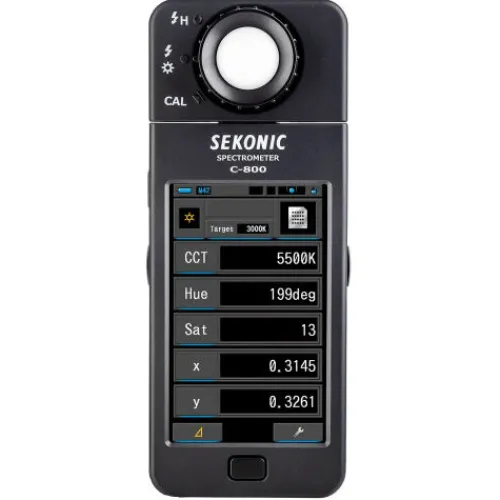

The C-800 has more colour control parameters specifically designed to help match lights to one another. CIE1931 (x, y) has been added, giving users the ability to measure and dial-in specific chromaticity coordinates into lights of some major brands. Hue and Saturation units of measure have also been added to better match RGB LEDs to any light source. In addition, new display screens provide easy interpretation and understanding of the new data fields, making this a superior meter for all applications.

Designed to be Used on Set

Fast button layout for single-handed operation

270° Swivel head to measure from any angle

Built-in dark slide for effortless on-set use

Measure Virtually any Kind of Light

The C-800 series incorporates a CMOS linear sensor, that measures and evaluates the true colour temperature of a light source from 380 to 780nm in 1nm output wavelength increments, capturing spikes in output of conventional light sources as well as fluorescent, flash, HMI, and LED sources.

Measurements

Measurements include Kelvin (K), Illuminance (lux/fc), LB/CC filters (for camera lens or lighting filters), LB/CC Index, CRI (Ra, R1 thru. R15), SSI, TLCI, TM-30-15 (Rf, Rg), CIE1931 (x, y) chromaticity coordinates, Hue, Saturation.

Expanded Colour Rendering Properties

Standards include CRI, SSI, TLCI, TLMF, and TM-30-15.

Extensive Memory

Up to 99 data measurements can be stored in the memory.

Wide Measurement Range of Colour Temperature

Colour Temperature: 1600 to 40,000K

Illumination: 1 to 200,000 lux in ambient light, 20 to 20,500 lux in flash light

User-Friendly Design

270-degree swivel head, dark calibration without a cap, large 4.3″ colour touch panel LCD display, and customise Function.

Various Displays

Text, Spectrum Graph, Spectrum Comparison, CRI, CRI Comparison, SSI, TLCI/TLMF, TM-30-15, lighting filter for Rosco and LEE, camera filter for Kodak Wratten, LEE and Fuji, Multiple Lights Comparison, White Balance Correction.

C-800 Series Utility

The utility which can be downloaded from www.sekonic.com, offers easy settings in the meter and analysis of memorised data in a computer.
