PortKeys Video Monitors & Accessories>HD7H 7" High-Bright HDMI Monitor

PortKeys Video Monitors & Accessories>HD7H 7″ High-Bright HDMI Monitor

Original price was: $255.99.Current price is: $187.62.

SKU: SKUVeRPrEiHns Categories: Pro Video, Video Accessories, Video Monitors & Accessories Tag: PortKeys Brand: PortKeys

Description
Reviews (0)

Key Features:

7″ 1280 x 720 HDMI Input Monitor
Supports up to DCI 4K24 Video Input
1000 cd/m² Brightness | 1000:1 Contrast
Histogram | Focus Peaking | Zebra
False Color | Anamorphic Modes | Markers
178° Viewing Angle
3.5mm Audio Output, Built-In Speaker
Power via L-Series Battery or DC Input
Top Buttons, 1/4″-20 Bottom Thread

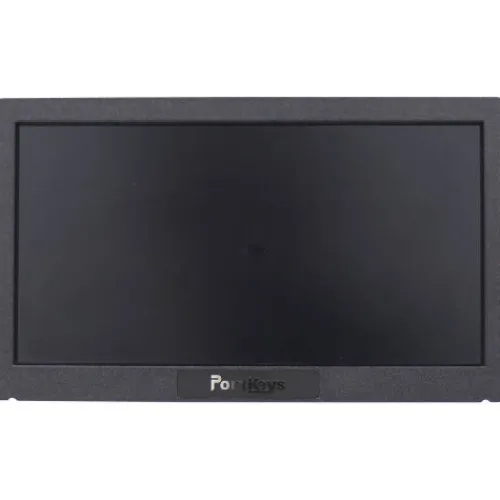

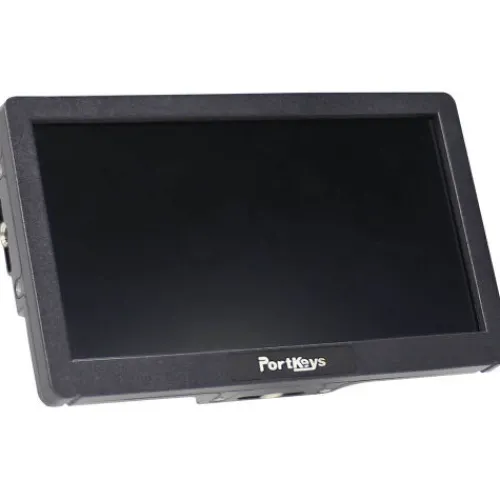

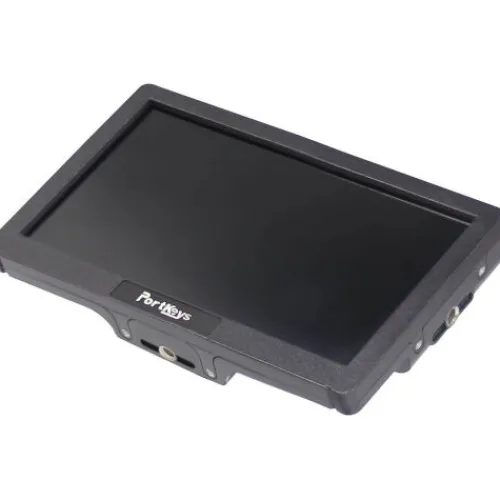

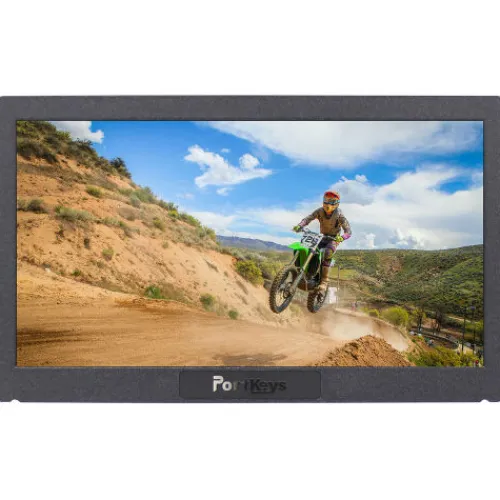

Portkeys HD7H 7″ High-Bright HDMI Monitor

The HD7H 7″ High-Bright HDMI Monitor from PORTKEYS enables you to view up to DCI 4K24 or UHD 4K30 video even in bright locations. This 1280 x 720 LCD panel features one HDMI input and one AV input, a 16:9 aspect ratio, a 1000:1 contrast ratio, and a 1000 cd/m² brightness for easy viewing outdoors as well as inside. The LCD provides a 178° viewing angle, enabling you to see an image without being directly in front of the monitor.

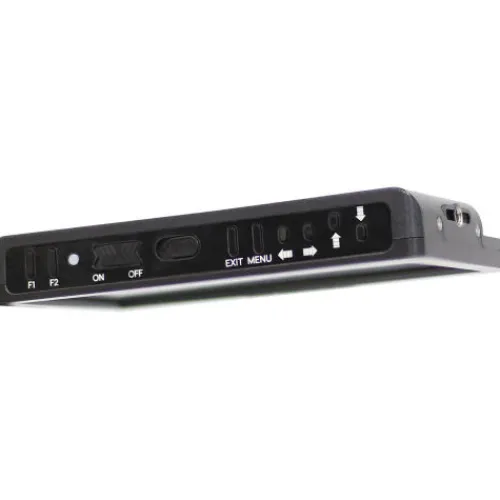

Power this monitor using the one Sony L-series-type battery or a separately available power supply. Control buttons are located on top of the monitor with a built-in speaker and a headphone output providing audio monitoring. The HD7H monitor features a variety of image-evaluating tools, including a histogram, false colour, exposure, focus peaking, anamorphic de-squeezing, and frame markers.

DISPLAY

Panel Type	LCD
Display Size	7.0″ / 17.8 cm
Native Resolution	1280 x 720
Aspect Ratio	0.67
Viewing Angle	Horizontal: 178°
	Vertical: 178°
Touchscreen	No
Maximum Brightness	1000 nits / cd/m2
Contrast Ratio	41.67
Colour Support	16.7 Million Colours (8-Bit)
HDR Support	No
Colour Gamut	75% Rec. 709
LUT Support	No
Image Controls	Anamorphic De-Squeeze, Check Field, Colour Temperature Selection, Customisable Aspect Ratios, False Colour, Focus Peaking, Histogram, Image Flip, OSD Flip, Screen Markers, Zebra

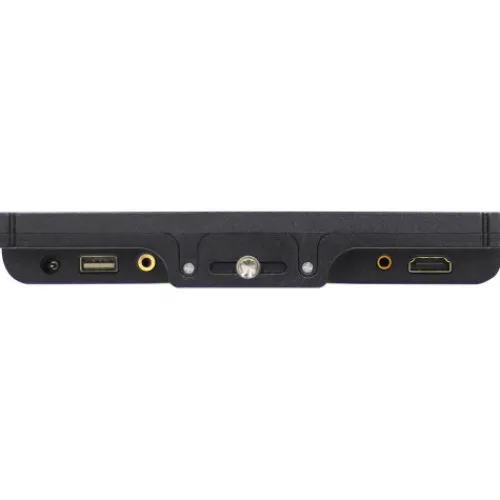

INPUTS/OUTPUTS

Video I/O	1x HDMI (Unspecified Signal) Input
	1x 1/8″ / 3.5 mm TRRS A/V Input
Embedded Audio	HDMI
Audio I/O	1x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	Mono
Other I/O	1x USB-A
Media/Memory Card Slot	No
Wi-Fi	No
Bluetooth	No
Mobile App Compatible	No

FORMAT SUPPORT

Video Format	HDMI
	DCI 4K: 24
	UHD 4K: 30

POWER

Input Power	7 to 24 VDC

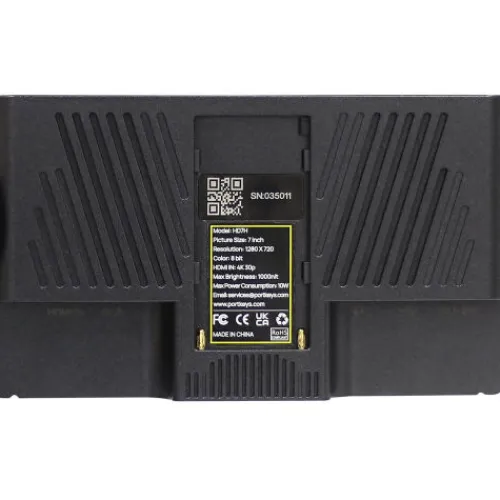

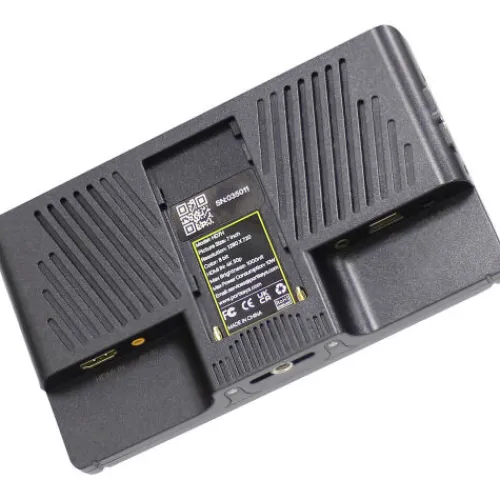

Battery	1x L-Series Mount on Fixed Plate
Power Consumption	10 W

MOUNTING

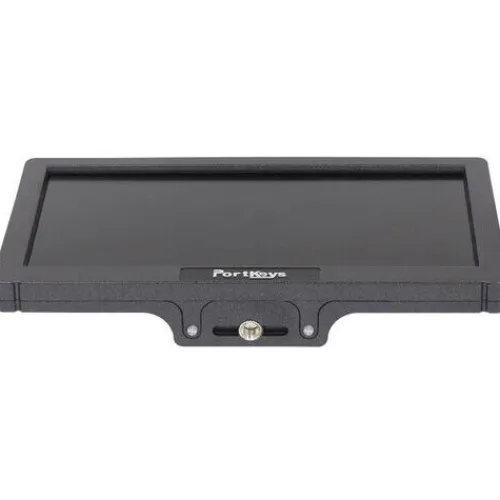

Tripod/Accessory Mounting	1x 1/4″-20 Female

GENERAL

Material of Construction	Aluminium
Dimensions	17.8 x 10.4 x 2.58 cm
Weight	0.27 kg

* Specifications subject to change by the manufacturer without notice.

Portkeys HD7H 7″ High-Bright HDMI Monitor
HDMI to Mini HDMI Cable
Rubber Sunshade
HDMI to HDMI Cable
HDMI to Micro-HDMI Cable
AV Cable
Ball Head Mount
