Nisi Tripod Accessories|Mounting Hardware>Macro Focusing Rail NM-180 with 360 Degree Rotating Clamp

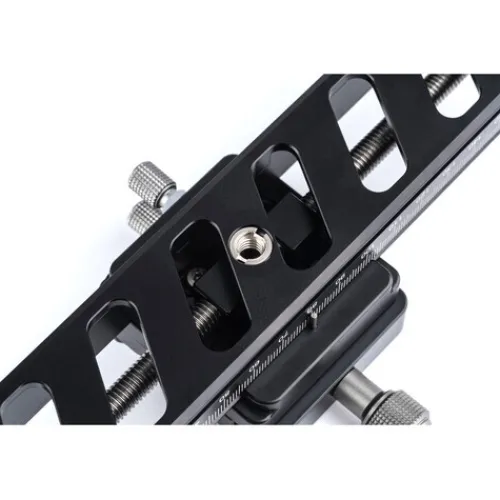

When taking macro photography, the NiSi Macro Focusing Rail NM-180 with 360 Degree Rotating Clamp allows you to accurately alter the position of your camera. The rail has an Arca-type compatible fast release clamp embedded into it, as well as an Arca-type plate. The focusing rail has a double-dovetail mount and is compatible with most Arca-type clamps. Without removing the plate from the clamp, the mounting clamp permits 360-degree rotation to adjust the camera direction.

The clamp size is 180mm and the adjustment range is 160mm, allowing for maximum camera movement. A Collapsible Thumb-Screw Knob adjusts the motion, making it simple to modify and store. A longer quick-release plate is included, which is suited for telephoto lenses and features a strap groove and is simple to lock and release. Also. the rail’s maximum load capacity is 5kg.

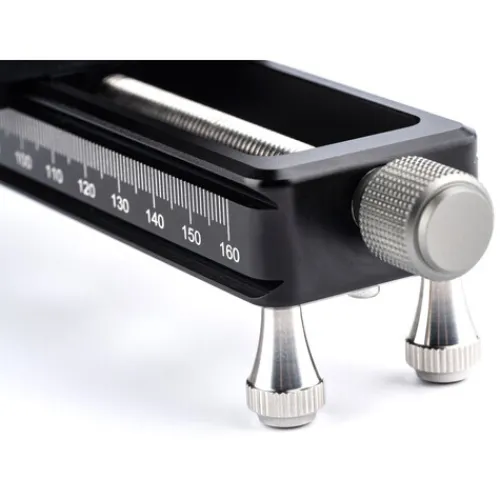

The Macro Rail contains four detachable foot nails that enable the rail to be used straight on the tabletop and can be placed in most Arca-type clamps/ball heads on the market. The stage travel per revolution is 1.25mm, and fine adjustments are made using engraved index markers on both sides of the rail. All tripod heads can be used because the bottom of the rail has 3/8″ and 1/4″ screw holes.

The NiSi Macro Focusing Rail NM-180 with 360 Degree Rotating Clamp is made of high-quality CNC machined aluminium and has a corrosion-resistant hard anodised finish. These features make it scuff and scratch resistant. Also, for dual-axis adjustments, the two focusing rails can be stacked.

The NiSi Macro Focusing Rail NM-180 with 360 Degree Rotating Clamp is the ideal accessory for NiSi Close-Up Lenses.
