Miller Video Tripods>CX8 Fluid Head with Toggle 2-Stage Alloy Tripod System

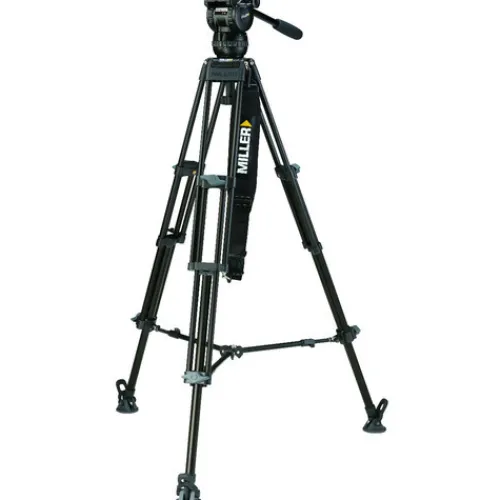

Miller CX8 Tripod System Overview

Designed for videographers, the Miller CX8 Fluid Head with Toggle 2-Stage Alloy Tripod System offers a lightweight overall weight, payload support of up to 26.4 pounds, a sturdy two-stage folding design, and a mid-level spreader included. Whether you’re shooting low to the ground or above the heads of spectators, the large height range will come in handy. The wide payload range is supported by a 15+0 step counterbalance and five fluid drag positions, plus a zero drag position. Read on for more information on the individual parts of this tripod system.

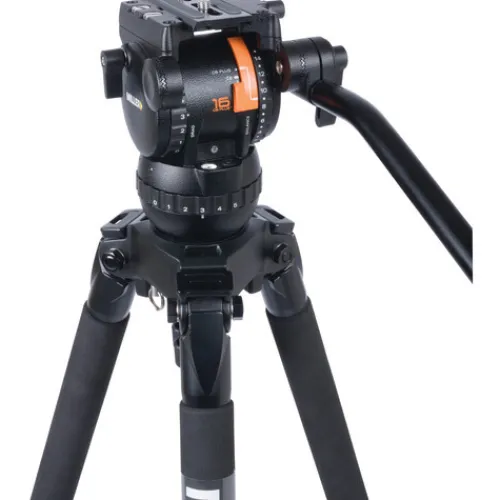

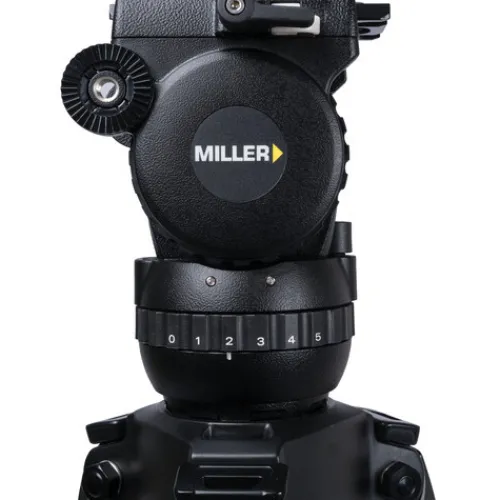

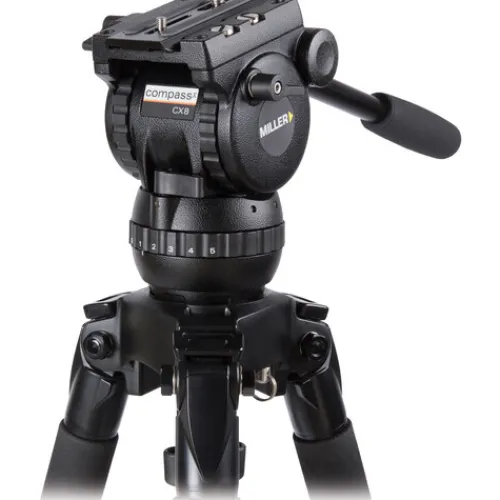

Miller CX8 Fluid Head

The Miller CX8 Fluid Head is designed to accommodate a wide payload range with 16 steps of counterbalance. Pan, tilt, and counterbalance can all be set to zero, enabling even the lightest of cameras to be supported. Maxed out, this head is rated to support camera setups up to 26.4 pounds, adequate for small cinema cameras with rigs or medium sized ENG camcorders. Securing your camera or rig is easy. The sideload plate design enables you to simply drop in your camera without the alignment issues posed by rear-loading variations. The plate offers 2.4″ of sliding range to balance your rig.

To survive fast-paced shooting environments, the CX8 is die-cast from a lightweight, yet durable metal alloy with composite polymers and precision ball-bearings for smooth mechanical operation. Even in harsh conditions, the CX8 will perform reliably. The base of the CX8 is a 75mm ball for mounting to compatible tripods and grip equipment. An illuminated bubble level makes it easy to level the CX8 in dark environments. A fixed length pan handle is included, and a second rosette is available for attaching an optional second pan handle.

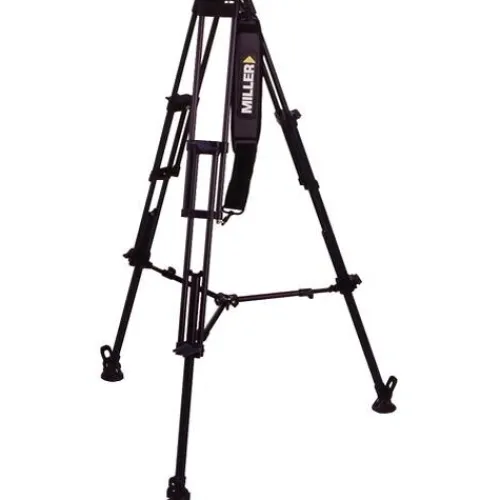

Miller Toggle 75 2-Stage Alloy Tripod (Mid-Level Spreader Ready)

The Miller Toggle 2-Stage Alloy Tripod is designed to be a compact yet sturdy platform for your 75mm ball-base fluid head. The 2-stage design allows for a large 39.11 to 155.95 cm height range while maintaining a compact folded length of 68.58 cm. Each stage features its own rotary clamp for secure locking, enabling support for payloads up to 24.94 cm. Compatible spreaders, rubber feet, and dollies are available separately.

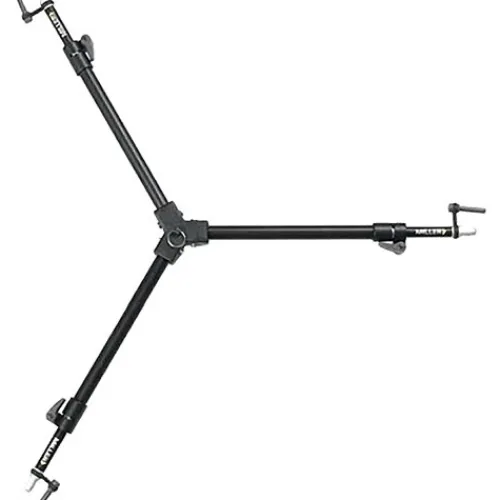

Miller 508 Telescopic Above Ground Spreader

The Miller 508 Telescopic Above Ground Spreader is designed for use with the 402 and the 420 2-stage tripods, and allows you to stably setup the tripods on uneven terrains, steps, and slopes. Made of alloy tubes, the sturdy spreader offers durability. The spreader allows you to instantly setup your tripod, holding individual legs at an equal or preset distance. Telescoping spreader arms enable you to further spread the legs hence you don’t have to detach the spreader from your tripod for a large area setup.

• Designed for use with the 402 and the 420 2-stage tripods
• Attaches to the center bracket of a tripod
• Allows you to stably setup the tripods on uneven terrains, steps, and slopes
• Alloy tubes ensure durability
• Allows you to instantly setup your tripod, and holds individual legs at an equal or preset distance
• Telescoping spreader arms enable you to further spread the legs hence you don’t have to detach the spreader from your tripod for a large area setup

Miller 550 Rubber Feet Pads for Select Tripods (Set of 3)

The 550 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods featuring 835 and 508 above ground spreaders.

Miller Pan Handle for Compass15 and Compass20 Fluid Heads

The Miller Pan Handle for Compass15 and Compass20 Fluid Heads is a 16mm fixed-length pan arm. The main tube is black-anodized aluminum alloy and features a comfortable rubber grip.

Miller 554 HD Shoulder Strap – for all Tripods

The Miller 554 HD Shoulder Strap is a tripod carry strap designed for the Miller Sprinter series tripods. It is a 2 inch wide strap that works with folded tripods from 25″ to 36″ and has a 3″ long shoulder pad.

• 2 inch wide tripod carry strap
• 3″ long shoulder pad

Compatible with;

• Miller Sprinter tripods
• Sachtler Hot Pods and other models with a key ring to attach a strap
• Any tripod 25″ to 36″ long with a key ring to attach a strap

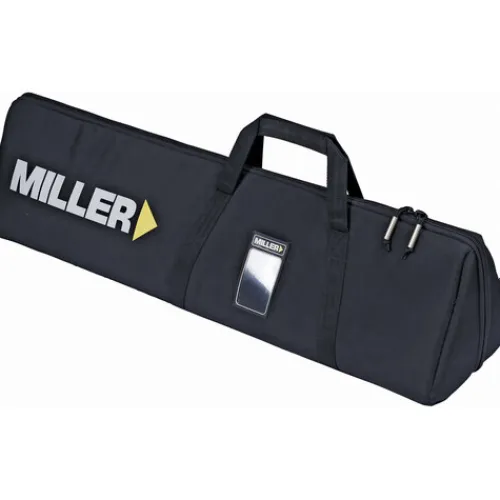

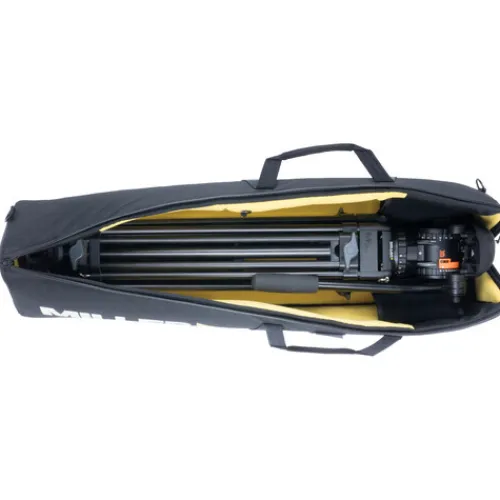

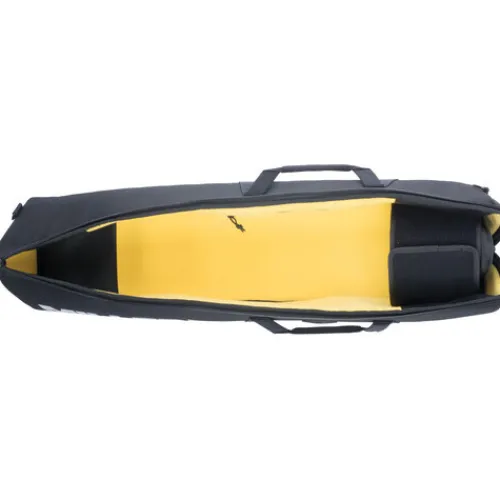

Miller Softcase for 2-Stage Toggle 2 Tripod Systems (Black)

Store, transport, and protect your tripod or other gear with the black Miller Softcase for 2-Stage Toggle 2 Tripod Systems. This sturdy case is constructed from Cordura nylon and high-density foam, with a brushed polyester interior. The triangular shape promotes a secure fit, and the dual zippers and wide opening provide easy access. Carry the case with the dual strap handles or attach an optional, user-supplied shoulder strap to the D-links. Users will appreciate the external pocket and card holder.
