Manfrotto Tripods>MVK504XSNGFC 504X Fluid Video Head with 635 FAST Carbon Fiber Tripod

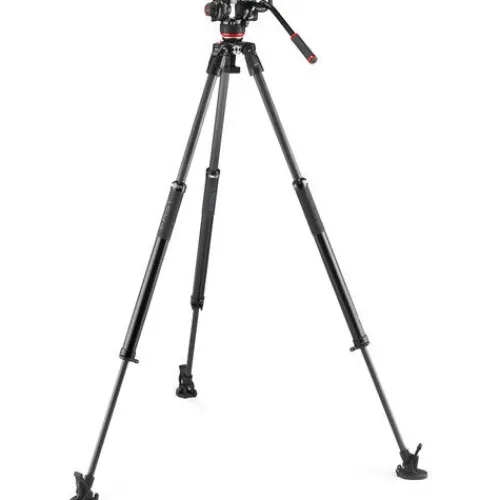

Manfrotto MVK504XSNGFC 504X Fluid Video Head with 635 Fast Carbon Fiber Tripod

Support your camera rig with the 504X Fluid Video Head and 635 Fast Carbon Fiber Tripod system from Manfrotto. This professional setup includes the 504X fluid head, the lightweight yet sturdy 635 Fast carbon fiber tripod, a leveling ball for seamless head-to-tripod integration, and a convenient carrying bag for easy transport.

The head features a 26.5 kg maximum load, a pan bar, a quick release plate, a counterbalance system with four presets, and its open bridge design that provides a stable, smooth performance and reduces weight. Its flat base with a 3/8″-16 female mounting thread allows compatibility with a wide range of tripods, monopods, sliders, jibs, and dollies, and a variety of rigs.

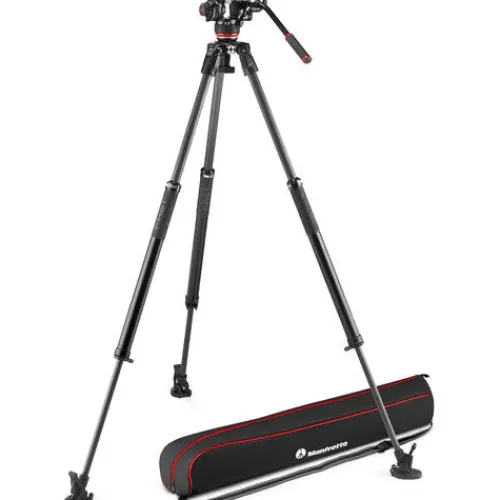

The single-tube carbon fiber tripod provides a 44 kg maximum load and a 75mm ball head mount. The 504X head mounts onto the 635 tripod using the included leveling ball. A carry bag is included to store and transport the entire system.

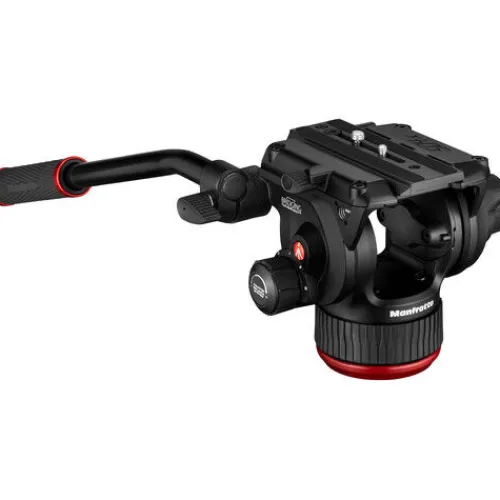

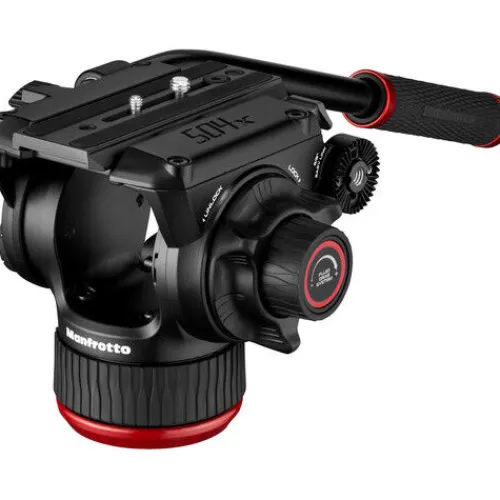

Manfrotto 504X Fluid Video Head with Flat Base

The 504X Fluid Video Head with Flat Base from Manfrotto features an open bridge design that provides a stable, smooth performance while reducing weight. The head’s patented bridge technology allows for a wider top surface and longer sliding plate that add stability and balance. The head features a flat base with a 3/8″-16 female mounting thread that allows compatibility with a wide range of tripods, monopods, sliders, jibs, and dollies, and a variety of rigs.

With its ability to support up to 26.5 kg, the 504X can be used with a variety of video and photo cameras and rigs. The pan and tilt counterbalance system includes four presets from 0 to 4.8 to 9.7 to 14.3 kg, enabling proper balance no matter what the camera’s size or weight.

At the same time, variable friction components with clearly marked degree scales and vibration-free movement bring new levels of fine-tuning to your tilts and pans. A leveling bubble keeps horizons from tilting, even in the dark, while independent disc-brake locks make sure the head stays secure when at rest.

Whether you’re using a pro camcorder or an accessorised DSLR, the 504X provides a 504PLONGR-1 sliding quick release plate with 1/4″-20 and 3/8″-16 threads to balance the camera properly on your rig. The head is made from durable aluminium and includes a pan bar that can be attached via rosettes on either the right or left side to help create smooth pan-and-tilt movements.

Fluid drag system for precise, smooth movements

Wide top surface and long sliding plate for extra stability and balance while using video or photo equipment

Four-step counterbalance system ensures quick setup and optimal performance

Rigid structure for maximum precision and improved responsiveness

Lightweight aluminium for optimum balance of strength and size

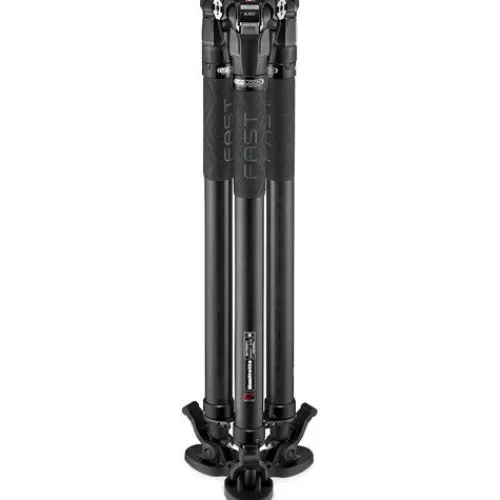

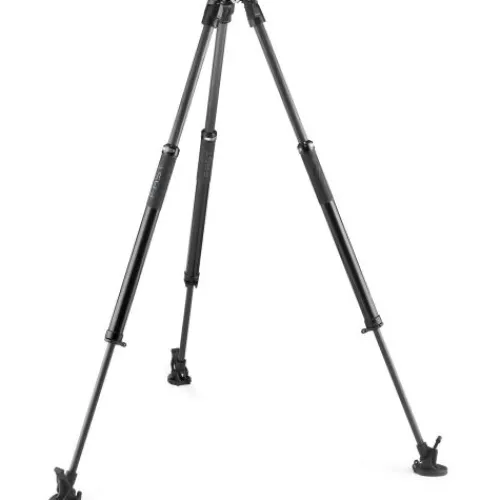

Manfrotto 635 Fast Single Leg Carbon Fiber Tripod Legs

The Manfrotto 635 Fast Single Leg Carbon Fiber Tripod Legs have a 75mm bowl base and load capacity of just over 44 pounds. This tripod has a maximum height of just over 61″, and with the legs spread wide a minimum operating height of 11″. The three leg sections feature synchronised twist-lock leg locks, which provide for faster leg adjustments of the leg height. The bowl base has three mounting fittings compatible with both the ARRI anti-twist and Manfrotto anti-rotation systems for mounting accessories.

The legs move independently of each other and have independent height adjustments, which is useful on uneven terrain and in odd-shaped or tight spaces. The legs have integrated locking angles of 23, 50, and 70°, so you don’t need to use a spreader to have a stable platform, though optional ground and mid-level spreaders are available. The legs feature integrated spiked feet, and rubber boots are included for working on delicate surfaces. The legs collapse down to about 29″ in length for storage and transport, and they weigh in at under 8 pounds.

Synchronised Twist-Lock Leg Locks

You can adjust the leg height using a single twist lock on each leg; this makes it faster to set up and break down

Independent leg height and angle adjustment make these legs well suited for working on uneven terrains such as rocky ground or stairs as well as in tight or odd-shaped spaces

The spiked feet provide grip when working on soft ground, while the included rubber boots provide grip when working on hard surfaces and protect delicate surfaces from the spiked feet

The legs can accept optional mid-level or ground spreaders

Bowl Adapter Ring

An optional bowl adapter ring offers the user the ability to work with 60mm half ball heads
