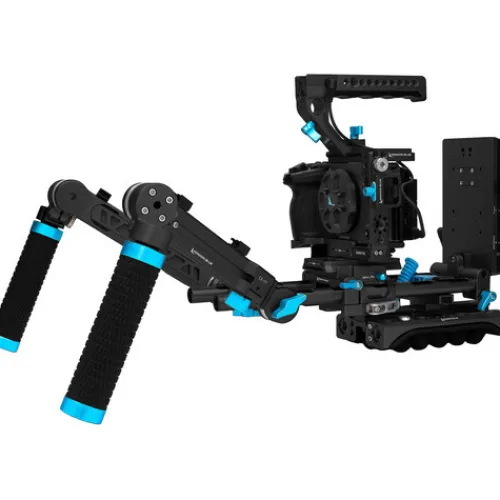

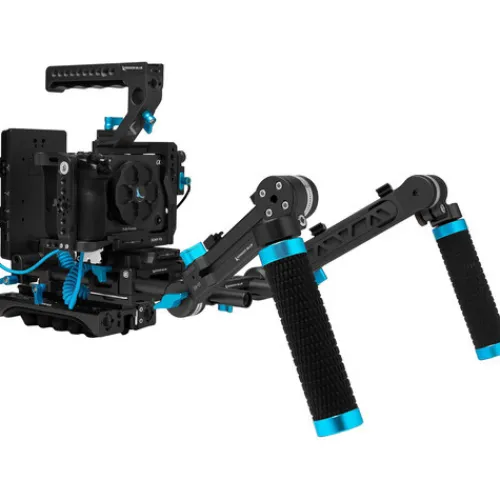

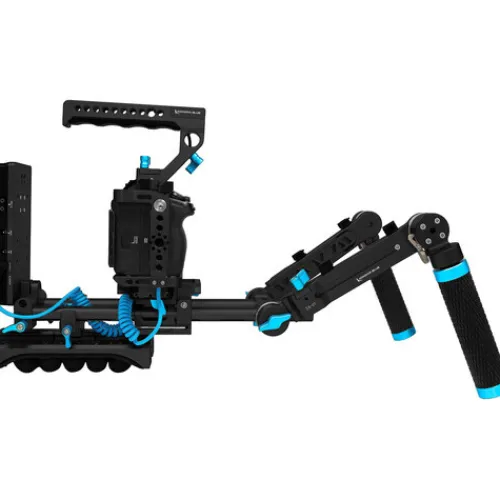

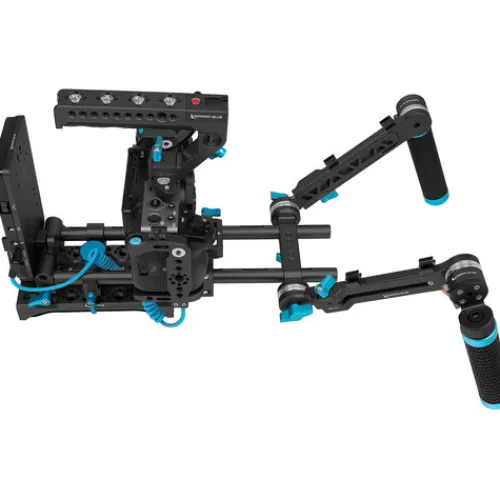

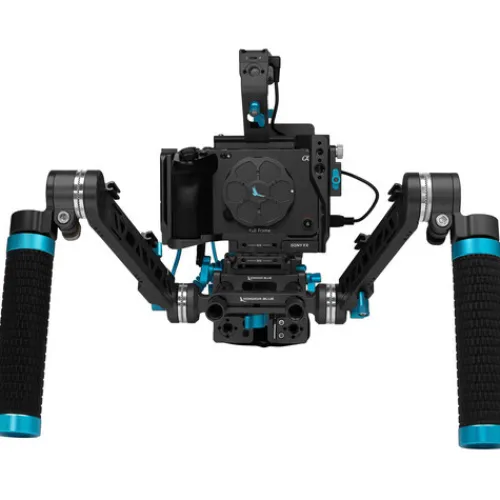

Kondor Blue Sony FX3 Ultimate Rig – Black

Enhance your Sony FX3 or FX30 cinema camera with shoulder support, protection, power, and accessory mounting using the Ultimate Rig from Kondor Blue. This black rig is a comprehensive solution, featuring a dedicated full camera cage, a NATO mount top handle with LANC control, a 15mm LWS universal baseplate, a shoulder pad, a 501 quick release plate, an Arca-Swiss bottom plate, an E-mount lens cap, a V-mount battery plate with a 15mm rod clamp, a 3.5mm to FZ-100 dummy battery, an adjustable rosette handgrip bundle, and a pair of 12″ 15mm rods.

Kondor Blue Sony FX3 Cage (Black)

Protect and mount a variety of accessories onto your Sony FX3 camera while still keeping your camera small and lightweight with this Kondor Blue Sony FX3 Cage in a black finish. The cage provides protection for your camera from the rigors of the production day, as well as multiple accessory mounting points, including 1/4″-20 and 3/8″-16 with ARRI-style anti-twist divots. NATO rails are built into the removable side pieces of the cage, and the NATO rail on top of the cage can be removed, allowing you to use the Sony FX3 XLR top handle (not included).

In addition to the removable top NATO rail, the top of the cage features a cold shoe with a safety pin arrangement designed to prevent your cold shoe-mounted accessory from accidentally falling out. The bottom of the cage features a raised front that helps keep your camera from twisting in the cage, and an integrated Arca-Swiss plate makes it easy to mount your camera/cage directly on a tripod head with an Arca-Swiss QR mechanism.

Kondor Blue Cage Top Handle with Start/Stop Camera Control for Select Cameras (Black)

This black Cage Top Handle with Start/Stop Camera Control from Kondor Blue mounts on top of your cage or top plate using its NATO clamp. This universal cheese-style handle features multiple 1/4″-20, 3/8″-16, and ARRI-style anti-twist threads, two shoe mounts, and a single 15mm rod port. The ARRI-style threads on the top feature pre-inserted 3/8″-16 to 1/4″-20 bushings so you have additional options for mounting your accessories.

The handle also features a start/stop button and a LANC port that can connect to a wide variety of camera models, such as those from Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more, using a separately available cable. The grip of the aluminium handle features a smooth, ergonomic design for added comfort and grip.

Quick Features

• Multiple 1/4″-20, 3/8″-16, and ARRI-style accessory threads
• Handle mounts with NATO clamp
• LANC trigger port with start/stop button
• Two shoe mounts and a single 15mm rod port for additional accessories
• Made from durable aluminium with an ergonomic grip
• Comes in black colour

Compatibility

• Start/stop control via Sony LANC/Panasonic protocol for Z CAM, Blackmagic, Sony, Canon, Panasonic, JVC, and more
• Cage or plate with NATO rail
• Magic arms, handles, and 15mm rod system
• Kondor Blue Mini Quick Release Plate

Kondor Blue Aluminium Body Cap for Sony E-Mount Cameras (Space Grey)

Protect your camera’s mount and sensor with this Aluminium Body Cap for Sony E-Mount Cameras, in space grey, from Kondor Blue. The engraved mounting indicators show you which way to turn the cap while holding it by its edge-gripping ridges. The cap locks into place in the camera’s mount, and the anodized finish protects the cap from scratches and scuffs.

Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 12″)

Add a pair of standard 15mm rods to your rig with this two-pack of 12″ PPSH 15mm Rods from Kondor Blue. These Space grey aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Space Grey)

Add professional battery power to your rig with this space grey V-mount Cine Battery Plate from Kondor Blue. The plate attaches to your rig with its built-in 15mm rod clamp and provides multiple DC power output ports for your camera and accessories.

The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and one D-Tap output. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.

Kondor Blue 1.35/3.5mm DC to Sony NP-FZ100 Dummy Battery Cable

Kondor’s 1.35/3.5mm DC to NP-FZ100 Dummy Battery Cable is a coiled power cable that allows you to connect select Sony cameras to Kondor Cine V-mount and Gold mount battery plates, allowing you to leave the D-Tap ports of the battery plates available for accessories. The NP-FZ100 dummy battery is compatible with the Sony a9 II, a9, a7R IV, a7R III, a7 III, a7S III, and a6600 cameras. The DC end connects to the Kondor battery plate and the cable outputs regulated power at 8V. The power regulator is neatly tucked away in the dummy battery, so it doesn’t interfere with the cable.

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)

Although featuring a fairly universal design, the space grey Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor’s Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4″-20 and 3/8″-16 mounting screws and offers 1/4″-20 and 3/8″-16 tripod mount threads on the bottom. It’s also rubber-padded to minimize twisting and prevent scratching.

Kondor Blue Shoulder Pad Air (Raven Black)

The raven black Kondor Blue Shoulder Pad Air is a versatile shoulder mount support pad stabiliser featuring an air-cushioned pad that allows you to accurately set air pressure using the included air pump. The unit offers twenty-two 1/4″-20 mounting threads for your accessories, giving you ample options for placement that can easily align with your particular rig setup.

The rotating NATO mount allows you to use the unit on your chest or for certain low-angle shots, and it can be adjusted using the appropriate tool built into the shoulder pad. Twelve ARRI mounts are also spread across the overall design of the unit for additional mounting options.

Pad

• Air-cushioned pad to perfectly set the air pressure
• Removable and washable

Mounts

• 12 ARRI mounts for mounting on rail systems when used with the optional ARRI-style Pin to Rod Clamp (60mm spread)
• 22 1/4″-20 threads
• Mounts on the NATO rail for mounting on a dovetail or baseplate

NATO Rail

• Can be bolted in place in a horizontal or vertical orientation for added security
• An adjustment tool is built into the shoulder pad
• NATO rail for the fine-tuning location of the shoulder pad under crowded rig components
• Safety stops are available at each end of the NATO
