Kondor Blue Camera Cages & Rigs>Shoulder Rig Pro V Mount – Black

Kondor Blue Shoulder Rig Pro V Mount – Black

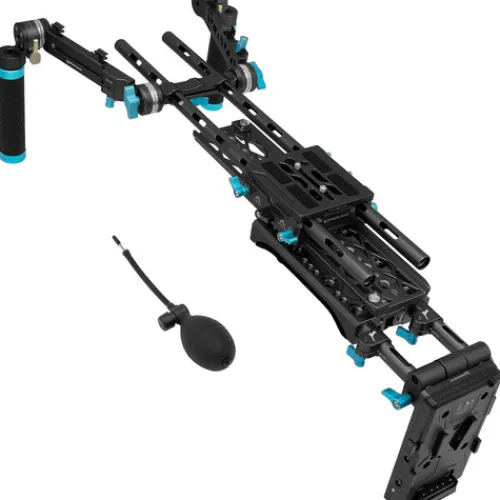

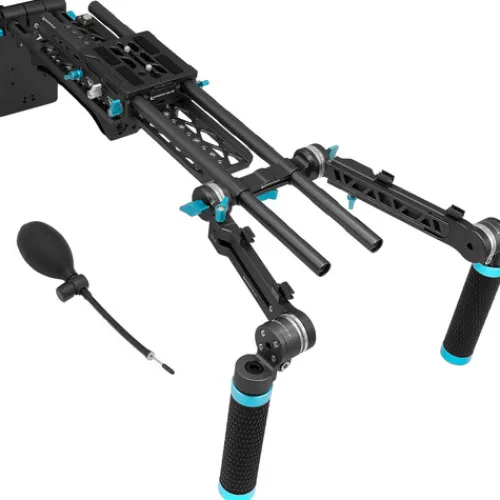

Introducing the Raven Black Shoulder Rig Pro from Kondor Blue, designed to provide lightweight support for your small to midsize camera rig during handheld shots. This comprehensive shoulder rig includes the Shoulder Pad Air, two 18″ 15mm rods, two 3″ 15mm rods, a rosette dual handgrip arm bundle, a 15mm LWS bridge plate, two ARRI-style accessory pin 15mm rod clamps, a dovetail plate, and a V-mount battery plate. Engineered for comfort and stability, the Shoulder Pad Air ensures cushioned support during extended shooting sessions, while the handgrip arm bundle allows for secure handling and maneuverability. With its sleek raven black finish, this shoulder rig not only provides functionality but also adds a touch of style to your filmmaking setup. Elevate your shooting experience with the Raven Black Shoulder Rig Pro from Kondor Blue.

The rig provides a comfortable, air-cushioned shoulder pad with adjustable handgrips and 360° rotating ARRI-style rosette mounts. The bridge plate provides a quick release plate to quickly transfer your camera between handheld and tripod rigs. The 15mm rods and multiple accessory threads allow you to add various optional components such as counterweights, battery plates, a follow focus system, or a matte box.

Kondor Blue Shoulder Pad Air (Raven Black)

The raven black Kondor Blue Shoulder Pad Air is a versatile shoulder mount support pad stabiliser featuring an air-cushioned pad that allows you to accurately set air pressure using the included air pump. The unit offers twenty-two 1/4″-20 mounting threads for your accessories, giving you ample options for placement that can easily align with your particular rig setup.

The rotating NATO mount allows you to use the unit on your chest or for certain low-angle shots, and it can be adjusted using the appropriate tool built into the shoulder pad. Twelve ARRI mounts are also spread across the overall design of the unit for additional mounting options.

Pad

• Air-cushioned pad to perfectly set the air pressure
• Removable and washable

Mounts

• 12 ARRI mounts for mounting on rail systems when used with the optional ARRI-style Pin to Rod Clamp (60mm spread)
• 22 1/4″-20 threads
• Mounts on the NATO rail for mounting on a dovetail or baseplate

NATO Rail

• Can be bolted in place in a horizontal or vertical orientation for added security
• An adjustment tool is built into the shoulder pad
• NATO rail for the fine-tuning location of the shoulder pad under crowded rig components
• Safety stops are available at each end of the NATO

Kondor Blue PPSH 15mm Rods (Pair, Black, 18″)

Add a pair of standard 15mm rods to your rig with this two-pack of 18″ PPSH 15mm Rods from Kondor Blue. These black aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

Kondor Blue PPSH 15mm Rods (Pair, Black, 3″)

Add a pair of standard 15mm rods to your rig with this two-pack of 3″ PPSH 15mm Rods from Kondor Blue. These black aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

Kondor Blue Universal 15mm LWS Bridge Plate for ARRI/RED/URSA/C70/VENICE (Raven Black)

Add 15mm LWS and quick release support to your professional camera rig with this raven black Universal 15mm LWS Bridge Plate from Kondor Blue. The bridge plate is designed to work with ARRI-standard dovetail rigs and can support larger pro cameras from ARRI and RED and camera models such as the Blackmagic Design URSA Mini line, Canon EOS C70, and the Sony FX6, Rialto, FS5, F5, and VENICE. It features an ARRI-standard dovetail base, a quick release camera plate, and a 15mm LWS rod system.

The quick release camera plate features 1/4″-20 and 3/8″-16 mounting screws, front M4 screws for a lens support, and rubber padding on top to protect the camera from scratching or twisting. The dovetail base offers 1/4″-20 and 3/8″-16 tripod mount threads. Its 15mm rod ports pass through the entire base and are secured with four locking levers, making it easy to add two sets of optional rods of different lengths through the front and rear. The bridge plate features a standard 3.3″ riser height to match the camera’s lens height, and optional riser plates will be available to support additional camera models.

Additional Features

• ARRI-standard dovetail base
• 15mm LWS rod support
• Standard 3.3″ riser lens height
• Quick release camera plate system
• 1/4″-20 and 3/8″-16 mounting screws
• 1/4″-20 and 3/8″-16 tripod mount threads
• Rubber padding on top of the plate

Compatibility

Professional cinema camera lines from ARRI and RED and camera models such as the Blackmagic Design URSA Mini line, Canon EOS C70, and the Sony FX6, Rialto, FS5, F5, and VENICE.

Optional camera-specific riser plates are available for a variety of additional cameras from ARRI, RED, Canon, and Sony.

Kondor Blue ARRI-Style 3/8″-16 Pin to 15mm Rod Clamp (Raven Black)

Mount a single 15mm rod onto your camera cage with the raven black ARRI-Style 3/8″-16 Pin to 15mm Rod Clamp from Kondor Blue. The lightweight bracket enables you to attach a lens motor or another rod-based accessory to your camera rig without adding the weight of a baseplate and rod system. This aluminium alloy bracket requires a 3/8″-16 or 1/4″-20 bolt to secure its ARRI-style anti-twist mount.

Kondor Blue 12″ ARRI Lightweight Dovetail Plate (Black)

The 12″ ARRI Lightweight Dovetail Plate from Kondor Blue is used with a separately available sliding bridge plate to balance your camera rig. This black plate features stopper screws and safety buttons on each end to prevent the bridge plate from sliding off.

Constructed with a front-to-back symmetrical design, the dovetail plate incorporates multiple 1/4″-20 and 3/8″-16 threads for mounting on a tripod plate or other support.

Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Raven Black)

Add professional battery power to your rig with this raven black V-mount Cine Battery Plate from Kondor Blue. The plate attaches to your rig with its built-in 15mm rod clamp and provides multiple DC power output ports for your camera and accessories.

The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and one D-Tap output. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.
