Kondor Blue Camera Cages & Rigs>Canon R5 Arca Ultimate Rig (R5/R6/R) – Space Grey

Kondor Blue Canon R5 Arca Ultimate Rig (R5/R6/R) – Space Grey

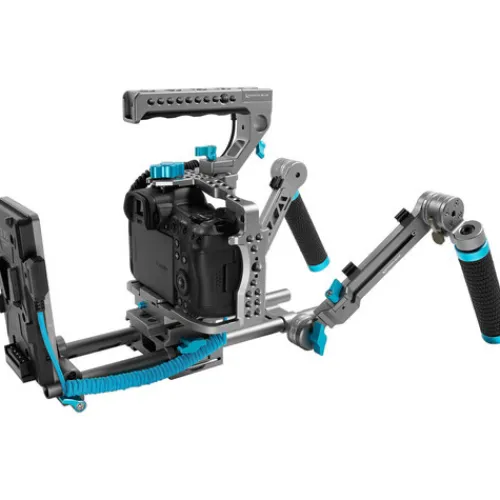

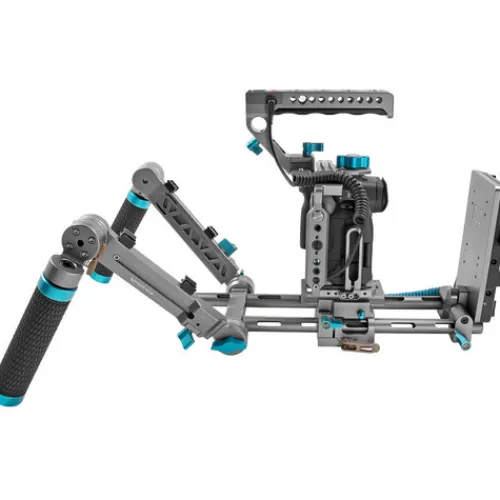

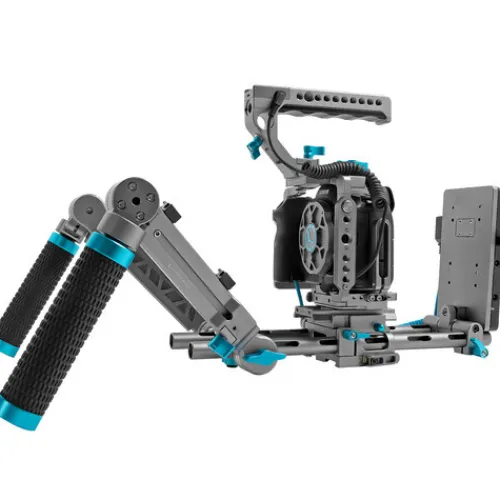

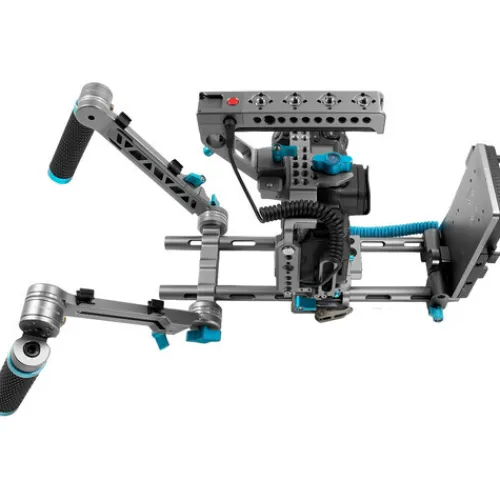

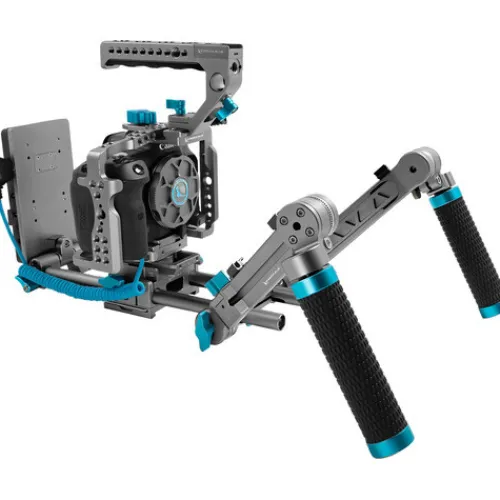

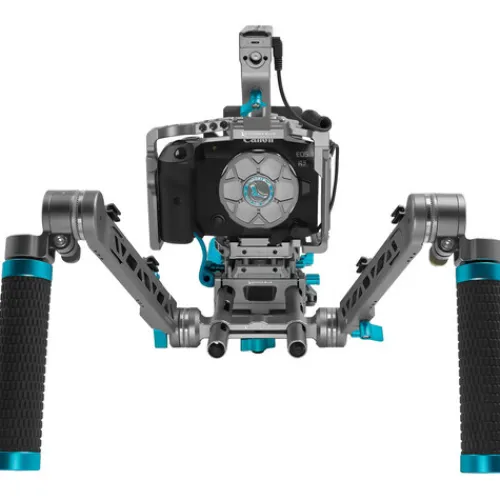

Create a full cinema setup with your Canon R, R5, R6, or R5 C camera using this space grey Ultimate Rig from Kondor Blue. It includes a full cage with remote trigger top handle, an ARRI/Manfrotto 501-compatible universal baseplate, rosette arms, grips, and clamp, a V-mount battery plate, a body cap, a pair of 12″ 15mm aluminium rods, and an LP-E6 dummy battery.

Kondor Blue Full Cage with Top Handle for Canon R5/R6/R (Space Grey)

This Full Cage with Top Handle from Kondor Blue is designed to protect, add accessory mounts, and provide a run/stop trigger for your Canon EOS R5, R6, or R camera. The bottom of this four-sided aluminium cage features an Arca-Swiss type quick release system for fast repositioning on different supports. The included top handle features a run/stop trigger for both video and still capture plus multiple accessory mounts.

When mounted, the cage maintains access to the camera’s ports, slots, and buttons and is designed to eliminate the twisting of the camera within the cage. This cage features a cold shoe with a safety pin, an ergonomic grip, both top and side NATO rails, and both HDMI and USB Type-C cable clamps to prevent accidental pullouts. The 70-plus accessory threads include multiple 1/4″-20, 3/8″-16, and ARRI-style anti-twist threads.

Features

• Four-sided aluminium cage for the Canon R5, R6, or R camera
• Top handle with run/stop trigger for both video and still photo capture
• Arca-Swiss type quick release system
• Top and side NATO rails
• Maintains access to the camera’s ports, slots, and buttons
• Multiple 1/4″-20, 3/8″-16, and ARRI-style anti-twist accessory threads
• HDMI and USB Type-C clamps prevent cables from accidental disconnection

Kondor Blue 15mm ARRI-Standard Baseplate for BMPCC 4K/6K Cage (Space Grey)

Although featuring a fairly universal design, the space grey Kondor Blue 15mm ARRI-Standard Baseplate is designed for Kondor’s Blackmagic Pocket Cinema Camera 4K/6K cages. It features an ARRI-standard dovetail and supports 15mm LWS rods. This baseplate has a side-load camera plate system, which lets you easily mount your camera from the top instead of having to slide it in from the front.

A Manfrotto 501-standard camera plate is included. It comes with 1/4″-20 and 3/8″-16 mounting screws and offers 1/4″-20 and 3/8″-16 tripod mount threads on the bottom. It’s also rubber-padded to minimize twisting and prevent scratching.

Additional Features

• ARRI-standard dovetail
• 15mm LWS rod support
• Side-load camera plate system
• Manfrotto 501 standard camera plate
• 1/4″-20 and 3/8″-16 mounting screws
• 1/4″-20 and 3/8″-16 tripod mount threads

Kondor Blue Cine Battery Plate with 15mm Rod Clamp (V-Mount, Space Grey)

Add professional battery power to your rig with this space grey V-mount Cine Battery Plate from Kondor Blue. The plate attaches to your rig with its built-in 15mm rod clamp and provides multiple DC power output ports for your camera and accessories.

The plate includes a switchable 7.4/8.4V 1.35mm DC barrel output, a 5V 2.5mm barrel output, a 12V 2.5mm barrel output, and one D-Tap output. It also has a 15V 2.5mm barrel input/output that allows you to input AC power to power accessories connected to the other outputs, as well as a separate 2.5mm barrel input to charge the battery. The 15mm rod clamps are secured on separately available LWS rods via two blue locking levers.

Kondor Blue PPSH 15mm Rods (Pair, Space Grey, 12″)

Add a pair of standard 15mm rods to your rig with this two-pack of 12″ PPSH 15mm Rods from Kondor Blue. These Space grey aluminium threaded rods feature PPSH cutouts throughout as part of the design, making them lighter yet still durable.

Each 15mm rod can be used to support various accessories such as follow focus systems, servo motors, lens supports, battery mounts, and more. For custom lengths, multiple units can be combined using optional Kondor M12 rod extension screws.

Kondor Blue Aluminium Body Cap for Canon RF Mount Cameras (Space Grey)

Protect your camera’s mount and sensor with this Aluminium Body Cap for Canon RF Mount Cameras, in space grey, from Kondor Blue. The engraved mounting indicators show you which way to turn the cap while holding it by its edge-gripping ridges. The cap locks into place in the camera’s mount, and the anodized finish protects the cap from scratches and scuffs.

Kondor Blue D-Tap to Canon LP-E6 Dummy Battery Cable (Kondor Blue, 16-36″)

The D-Tap to Canon LP-E6 Dummy Battery Cable from Kondor Blue lets you power compatible devices from a brick battery with a D-Tap port or other D-Tap sources. With a stylish braided Kondor blue coiled cable, it allows you to keep a neat setup at 16″ in length or extend it up to 36″ to run it to the back of your camera rig to power monitors, cameras, lights, and other devices that run on LP-E6 batteries.

Additional Features

• Connect D-Tap sources to your device
• D-Tap to LP-E6 type dummy battery connectivity
• 16″ contracted length
• 36″ extended length
• Input voltage: 8 to 17V
• Output voltage: 8V (regulated)
• Output current: 2A
