Elinchrom Studio Lighting Kits>ELC Pro 500/500 To Go Set Including Skyport Plus

Powerful Studio and On-the-Go Kit

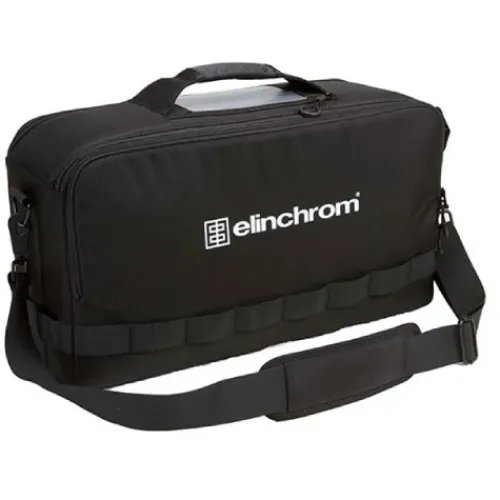

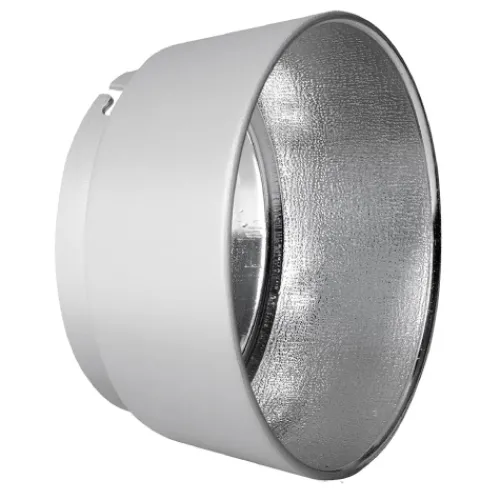

The Elinchrom ELC Pro HD 500/500 To Go Set is the perfect choice for photographers who need a powerful core kit for both studio and on-the-go shooting. The set includes two 500W/s flash heads with built-in EL Skyport SPEED radio receivers, an EL Skyport SPEED transmitter, a ProTec Poly Bag for the lights, and two umbrella reflectors.

Elinchrom has packed the ELC Pro HD 500 with professional features we’ve come to expect from a flash head of this calibre and added quite a bit more. Power is continuously variable from 7 to 500W/s while the 300W proportional modelling lamp allows you to preview your settings before exposure. The ELC Pro HD 500 recycles to full power in just 0.7 sec. with flash durations as short as an action-freezing 1/5,000 sec. at lower settings. In fact, up to 20 frames per second are possible at minimum power. An intelligent low noise, the temperature-activated fan keeps the head cool and a pre-flash detector let you integrate your on-camera flash into your studio system.

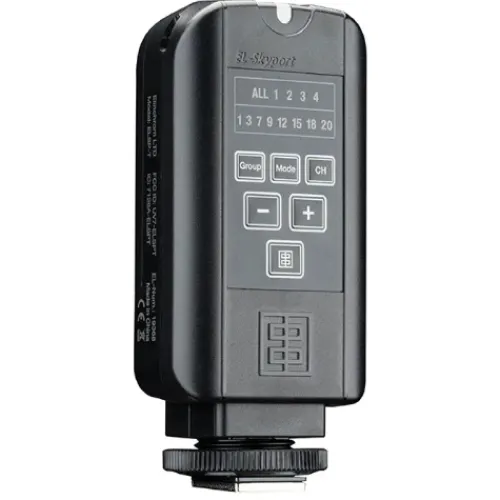

Since the heads have built-in 8-channel EL Skyport SPEED receivers, you can trigger them wirelessly at distances up to 393′. The transmitter trigger modes allow you to address special situations. The Sequential Mode, for instance, enables triggering up to 20 ELCs in bursts or in a continuous cycle. Delayed Mode offers a choice of first or second-curtain syncing while Strobo Mode allows single-frame stroboscopic action sequences

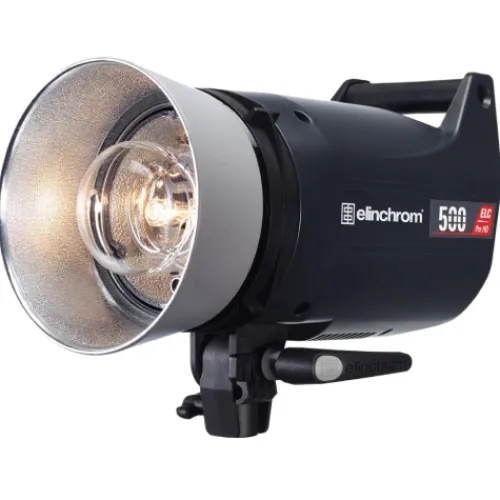

Elinchrom ELC Pro HD 500 Flash Head

The ELC Pro HD 500 Flash Head from Elinchrom is evidence of the company’s continued commitment to pushing the envelope in moonlight design. Elinchrom has packed the ELC Pro HD 500 with professional features we’ve come to expect from a flash head of this calibre and added quite a bit more. Short recycling times coupled with fast flash durations make freeze-motion, and stop-action shooting possible. In fact, up to 20 frames per second are possible at minimum power. An intelligent low noise, the temperature-activated fan keeps the head cool and lengthens the life of both the flash tube and modelling lamp. A pre-flash detector lets you integrate your on-camera flash into your studio system.

Power, variable continuously from 7 to 500Ws, can be mimicked by the 300W proportional modelling lamp to preview your effects. Although Elinchrom provides one, you can swap the sync cord with a separately purchased 8-channel transceiver for wireless triggering from your camera. The head has one built-in to receive the signal. Flash modes allow you to address special situations. The Sequential Mode enables triggering up to 20 ELCs in bursts or in a continuous cycle. Delayed Mode offers a choice of first or second-curtain syncing while Strobo Mode allows single-frame stroboscopic action sequences. Finally, the auto-sensing multi-voltage power supply means that you can use the ELC Pro HD 500 anywhere in the world.

• Built-in EL-Skyport receiver for triggering
• EL-Skyport with 8 frequency channels with 4 groups
• EL-Skyport Speed Sync mode for synchronization up to 1/320 sec on enabled SLR cameras
• Intelligent pre-flash detector system to enable the use of ELC units with speedlights
• 8 f-stop range
• Action-freezing flash durations of 1/2330 @ full power (t0.5) and as short as 1/5000 sec at 53W
• Stable even at the fastest recycling times
• Up to 20 flashes per second
• Consistent colour temperature with +/- 150K
• Power Auto-dump
• Multi-voltage auto-detection: 90-265 VAC excluding modelling lamp
• Low 5V sync voltage safe for all digital camera systems
• The intelligent low-noise fan spins slower or faster depending on the internal temperature of the unit
• Impact-resistant and fire-retardant body shell
• Accessory bayonet permits the use of the complete range of light modifiers

The Elinchrom Standard

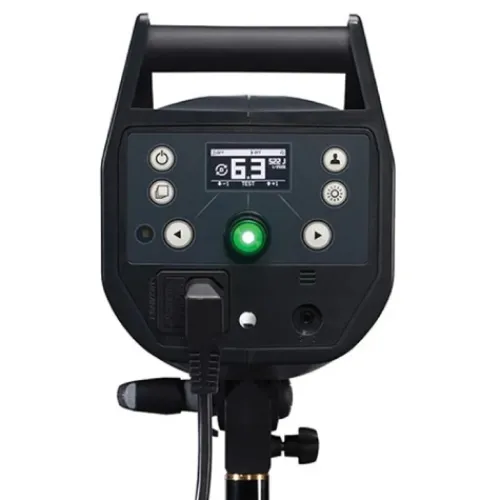

• OLED display for information and clarity
• Dashboard for an enhanced experience
• Precise control

Flash Modes

• Sequence Mode allows you to sequentially trigger up to 20 ELCs, in bursts or as a continuous cycle to utilize the high frame rate of your camera
• Delayed Mode provides the option of first or second curtain sync and everything in-between
• Strobo Mode allows you to take a picture with stroboscopic effects in a single frame
