DESVIEW Video Monitors & Accessories>R6 UHB 5.5'' Ultra High-Brightness Touchscreen Monitor

DESVIEW Video Monitors & Accessories>R6 UHB 5.5” Ultra High-Brightness Touchscreen Monitor

Original price was: $515.16.Current price is: $182.85.

SKU: SKUKqwiDLW2yp Categories: Pro Video, Video Accessories, Video Monitors & Accessories Tag: DESVIEW Brand: DESVIEW

Description
Reviews (0)

Key Features:

Full HD 1080p Touchscreen Display
DCI 4K24/UHD 4K30 HDMI Input & Output
3D LUT Import via SD Card Slot
Waveform, Zebra, Audio Meters, and More
Multiple Anamorphic Ratio Display Modes
Combo L-Series & LP-E6 Battery Plate
Headphone Jack
Built-in Cooling Fan
Shoe Mount Included
7 to 24V Input & 8V Output Power Port

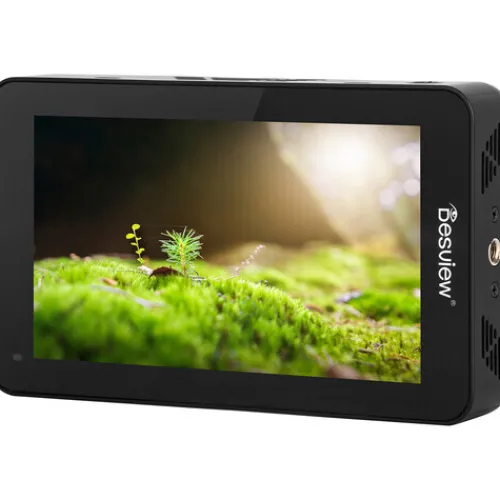

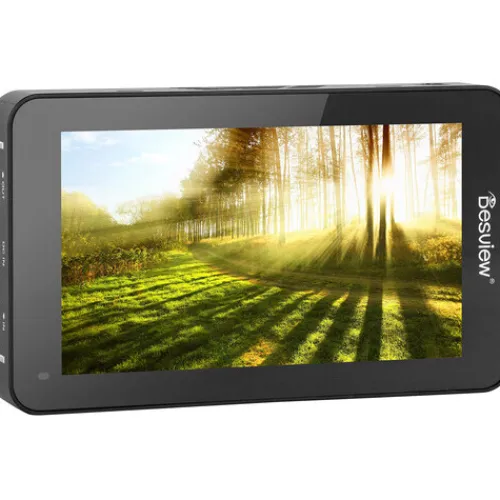

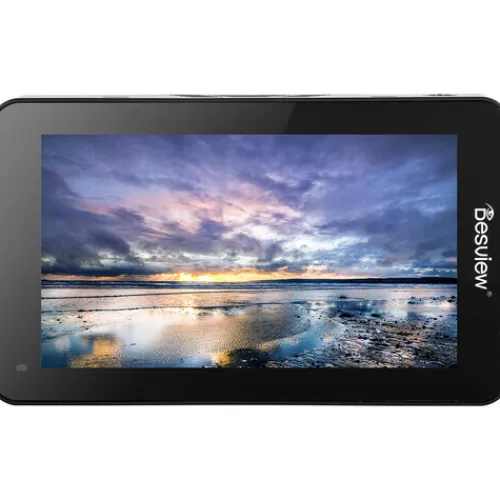

The R6 UHB 5.5″ 2800 cd/m2 Ultra High-Brightness Touchscreen Monitor is a small, on-camera touchscreen monitor with polycarbonate and ABS plastic shell that is both lightweight and resilient. It has a 1920 x 1080 ultrabright display with a 1000:1 contrast ratio that is suitable for outdoor use without a sun hood, and a built-in sensor lets you set the monitor to automatically adjust the screen brightness. The monitor’s HDMI input supports DCI 4K24 and 4K30 UHD, scaling the signal for display, and the loop-through HDMI output lets you send the camera signal’s original, unaltered signal to other monitors or connect to a wireless transmitter for simpler transmission.

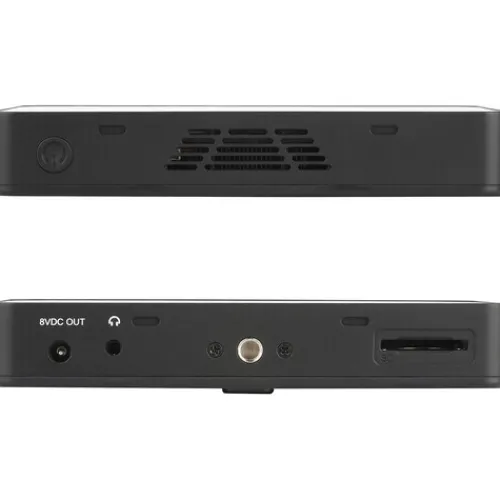

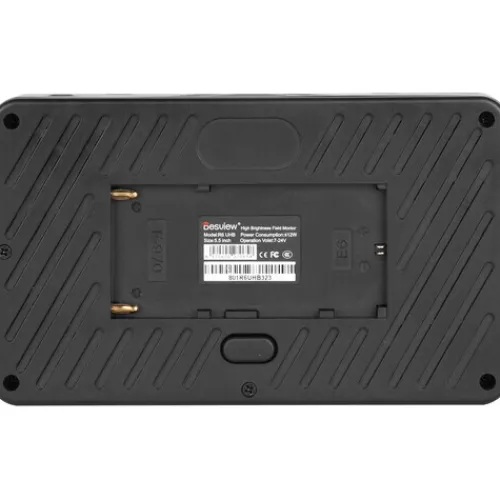

The R6 UHB allows you to import up to 3D LUTs via an SD card slot, and the monitor supports SDR and HDR viewing, including HLG and PQ. Built-in signal and camera tools include histogram, false colour, peaking, zebra, and more. Display functions are easily accessed by the touchscreen and include image freeze, L/R flip, aspect ratio adjustment, and anamorphic de-squeeze selection. The monitor features a headphone jack, and a built-in fan draws air in from the sides and back of the monitor, expelling it out of the top. Two 1/4″-20 mounting holes are provided, on the bottom and right side, allowing for horizontal and vertical mounting. A shoe mount adapter is included for attaching the monitor to your camera’s hot shoe or a cage with a shoe mount. The monitor has a combination L-series/LP-E6 battery plate and a 7-24 VDC power input port, as well as an 8 VDC power output port.

Software Monitoring Features:

False colour

False colour ARRI

Zebra

Luminance waveform

RGB waveform

Luminance histogram

RGB histogram

Focus peaking

Safety marker

Center marker

Audio meters

Colour temperature adjustment

Zoom

Pixel-to-pixel

Display flip

Grid line overlay

Anamorphic mode: 1.33x, 1.5x, 1.66x, 1.79, 2.0

HDR Support:

The monitor supports SDR and HDR monitoring, including HLG and PQ.

LUT Support:

The R6 UHB supports uploading LUTs via the built-in SD card slot, and it comes with an SD card that is preloaded with multiple LUTs.

Display
Panel Type	IPS-Type LCD
Display Size	5.5″ / 14.0 cm
Resolution	1920 x 1080
Aspect Ratio	16:09
Viewing Angle	Horizontal: 178°
Vertical: 178°
Touchscreen	Yes
Maximum Brightness	2800 cd/m2
Contrast Ratio	1100:01:00
Bit Depth / Color Support	8-Bit (16.7 Million Colors)
HDR Compatibility	Yes
Pixels Per Inch (PPI)	401 PPI
Real-Time LUT Monitoring	SDR, HDR

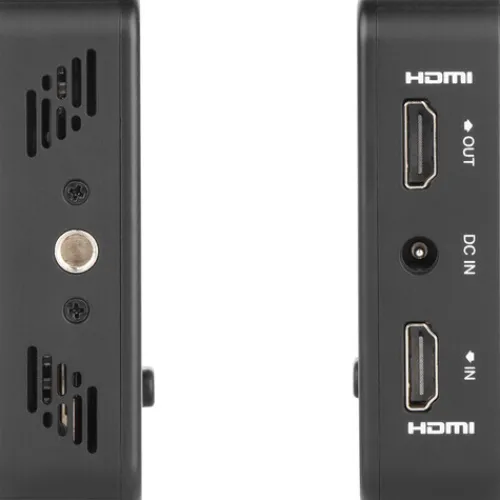

I/O
Video	1 x HDMI Type A Input
1 x HDMI Type A Output
Audio	1 x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	None
Power I/O	1 x Barrel Input
Other I/O	1 x Proprietary
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC
Wi-Fi	None
Format Support
Video Format	HDMI
DCI 4K: 24
UHD 4K: 30/25/24
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94
480i: 60/59.94
Power
DC Input Power	7 to 24 VDC
Battery Type	1 x LP-E6, L-Series
Power Consumption	12 W
Mounting
Mounting	2 x 1/4″-20 Female
Environmental
Operating Temperature	14 to 122°F / -10 to 50°C
General
Material of Construction	Plastic, Polycarbonate
Dimensions	6 x 3.5 x 1″ / 152 x 89 x 25 mm
Weight	0.5 lb / 240 g
