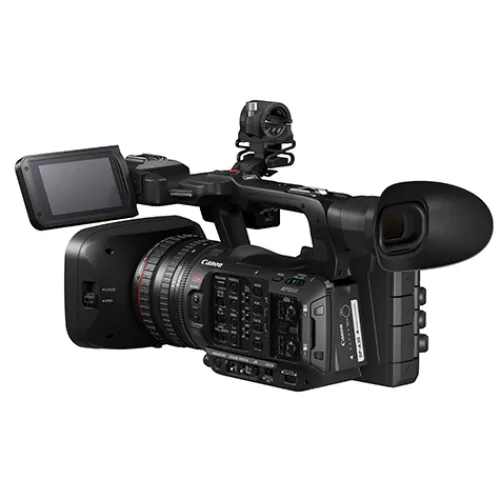

Canon Camcorders>XF605 UHD 4K HDR Pro Camcorder

Sensor Resolution

Actual: 13.4 Megapixel (4268 x 3148)
Effective: 8.29 Megapixel (3840 x 2160)

Sensor Type

1″ CMOS Sensor

Image Stabilization

Optical in Integrated Lens
Digital

Built-In ND Filter

Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/18) ND Filters

Shutter Type

Rolling Shutter

Shutter Speed

1/4 to 1/2000 sec

Shutter Angle

11 to 360°

Precise Scan Rate Control

Yes

Sensitivity

f/12 at 2000 lux

Minimum Illumination

1.5 Lux at 1/30 Shutter Speed

White Balance

2000 to 15,000K

Focal Length

8.3 to 124.5mm (35mm Equivalent Focal Length: 25.5 to 382.5mm)

Optical Zoom Ratio

15x

Max Digital Zoom

30x ( in 1080p)

Maximum Aperture

f/2.8

Minimum Aperture

f/4.5

Optical Design

18 Elements in 14 Groups

Minimum Focus Distance

Entire Zoom Range: 2.0′ / 60.0 cm
Wide: 0.4″ / 1.0 cm

Filter Size

58 mm

Control Rings

Focus
Zoom
Iris

Focus Control

Autofocus
Manual Focus

Recording Modes

H.265/MP4 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (135 to 225 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94/120 fps (50 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (12 Mb/s)
H.265/MP4 4:2:0 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (18 to 170 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (9 to 12 Mb/s)
H.218 Long GOP/MP4 4:2:0 8-Bit:
3840 x 2160p (150 Mb/s)
1920 x 1080p (35 Mb/s)
MXF/XF-AVC 4:2:2 10-Bit:
3840 x 2160p at 23.98/25/29.97/50/59.94 fps (160 to 410 Mb/s)
1920 x 1080p at 23.98/25/29.97/30/50/59.94/120 fps (50 to 310 Mb/s)
1920 x 1080i at 50/59.94 fps (50 to 160 Mb/s)

Variable Frame Rates

to 120 fps

Gamma Curve

Canon Log 3, HDR-HLG

Audio Recording

2-Channel 16-Bit 48 kHz AAC Audio
4-Channel 24-Bit 48 kHz LPCM Audio

Still Image Support

JPEG
2 MP (1920 x 1080)

IP Streaming

MPEG2: 1920 x 1080 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 16.00 Mb/s)
MPEG2: 1920 x 1080 to 1920 x 1080 at 50i, 59.94i (4.0 to 9.0 Mb/s)

Media/Memory Card Slot

Slot 1: SD/SDHC/SDXC
Slot 2: SD/SDHC/SDXC

Video Connectors

1 x HDMI (HDMI 2.0) Output
1 x BNC (12G-SDI) Output

Audio Connectors

2 x 3-Pin XLR Input
1 x 1/8″ / 3.5 mm Stereo Input
1 x 1/8″ / 3.5 mm Stereo Headphone Output

Built-In Microphone Type

Stereo

Other I/O

1 x USB Type-A Output
1 x USB Type-C
1 x BNC Genlock, Sync Input/Output
1 x BNC Timecode Input/Output
1 x 2.5 mm Control
1 x 8-Pin D-Sub Control
1 x RJ45 LAN Input/Output

Wireless Interfaces

2.4 / 5 GHz MIMO Wi-Fi Video Output, Audio Output, Control

Size

3.45″

Resolution

2,760,000 Dot

Display Type

Articulating Touchscreen LCD

EVF

Attached

EVF Display Type

OLED

Screen Size

.36″

EVF Resolution

1,770,000 Dots

Battery Type

Canon BP-A Series

Power Connectors

1 x Barrel (24 VDC) Input

Power Consumption

21.5 W

Operating Temperature

0 to 40°C

Operating Humidity

0 to 85%

Accessory Mount

1 x Cold Shoe Mount
1 x Multi-Interface Shoe

Tripod Mounting Thread

1/4″-20 Female
3/8″-16 Female

Built-In Light

Yes (Infrared)

Dimensions

180 x 173 x 335mm

Weight

2000 g
