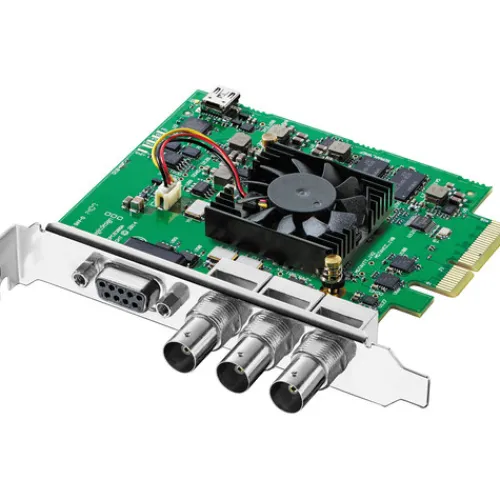

Blackmagic Design Decklink SDI 4K Capture & Playback Card

The Decklink SDI 4K Capture & Playback Card from Blackmagic Design features a single multi-rate SDI input and output, accepting single-link SD, HD, 3G, and 6G-SDI signals. This ensures support for resolutions ranging from SD to Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160). Additionally, the Decklink SDI 4K includes RS-422 deck control, internal keying, and a reference input for enhanced functionality.

Decklink SDI 4K offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD as well as 10-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior colour correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. Decklink SDI 4K is compatible with macOS, Windows, and Linux based workstations with downloadable software.
