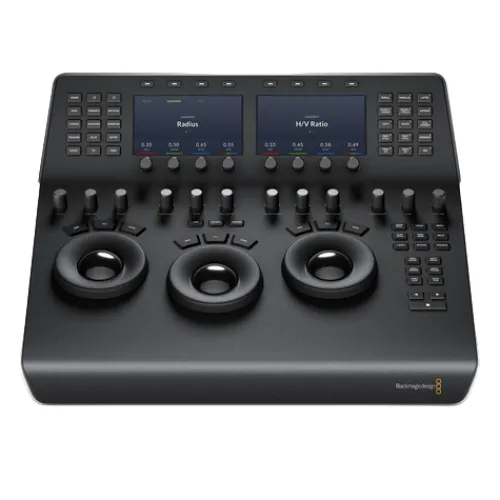

Blackmagic Design DaVinci Resolve Mini Panel with Resolve Studio Software

The DaVinci Resolve Mini Panel from Blackmagic Design offers enhanced functionality over the Micro panel while excluding some features of the Advanced panel, and it includes DaVinci Resolve Studio software. This portable control surface is perfect for those who need to switch seamlessly between editing and colour grading. It can be placed on your desktop, mounted in a rack, or bolted to a surface. Like the Micro panel, it features three high-resolution, weighted trackballs and 12 control knobs for quick access to essential primary colour-correction tools in the Resolve software. Additionally, 18 dedicated keys on the right side provide easy access to the most commonly used grading features and playback controls.

However, the Mini Panel also features two LCD screens that allow you to display menus or the parameters of the tools you are working with. Eight customisable soft knobs provide precise control and a quick reset by pushing the knob. Dedicated feature buttons allow you to change tools without needing to use the mouse. The Mini panel incorporates both USB-C and Ethernet interfaces. It is compatible with Mac, Windows, and select Linux systems. You can power the panel via an AC power source, a 4-pin XLR connector, or PoE. For the panel to work with Resolve, your computer must be running DaVinci Resolve 14.3 or DaVinci Resolve Studio 14.3 or later.

Small enough to take with you, so you can bring it to any Resolve system (14.3 or later) and do colour correction on location or at the editor’s suite

• DaVinci Resolve Studio software included
• Shares basic layout with both Micro and Advanced Panels
• Interfaces with and controls software
• Log and Offset colour-correction selection buttons
• Buttons are backlit and light up when actuated
• Two LCD screens for displaying the menu system or the parameters of the tools you are working with
• Custom control knobs with 4096 steps per rotation and push-button reset

Primary Correction Creative Control Knobs

Control knobs are grouped into four sets of three knobs

Luminance

• Y Lift Control: Adjust the contrast of the image in the darker areas, specifically in the Y (luminance) channel only. This adjustment allows for changing the black point without changing saturation.
• Y Gamma Control: Adjust the contrast of the image in the mid-tone areas, specifically in the Y (luminance) channel only. This control helps add depth and extra vibrancy to shots.
• Y Gain: You can reduce hot spots or tweak the whites to define a look.

Contrast

• Contrast Control: Increase contrast to make the blacks darker and the whites brighter, or decrease contrast to do the opposite.
• Pivot: Change the center of tonality about which dark and bright parts of the image are stretched or narrowed during a contrast adjustment.
• Mid-Tone Detail: Affect the contrast of regions of the image with high edge detail to increase or decrease the perception of image sharpness and definition. Often used for softening facial features, making it popular for beauty shots.

Detail

• Colour Boost Control: Raise the saturation in regions of the image with low saturation while leaving properly saturated areas alone. Also known as a vibrance operation, this is useful for adding colour without oversaturating the image.
• Shadow Control: Selectively lighten or darken shadow detail without affecting your image’s mid-tones.
• Highlight Control: Enable retrieving blown-out highlight detail in high dynamic range media by lowering this parameter. This allows you to achieve a smooth blend between the retrieved highlights and unadjusted mid-tones for a natural-looking image.

Saturation

Increases or decreases overall image saturation you can turn your colour image into a Greyscale image with this control.

• Hue Control: Rotates all hues of the image around 360° of the colour wheel. The default setting is 50, which retains the original distribution of hues.
• Luminance Mix Control: Controls the balance between the YRGB adjustments and Y-only adjustments made using the Y channel lift, gamma, and gain controls.

Power

The system powers from either a separately available AC power adapter or a 12 VDC source via the 4-pin XLR connector.

Mounting

The Mini panel can sit on a desktop, be mounted in a rack, or mount on a surface to prevent theft or be used in a moving vehicle or on a cart.

System Requirements for DaVinci Resolve

System requirements as of DaVinci Resolve 18:

Minimum System Requirements for Mac OS

• macOS 11 Big Sur
• 8GB of system memory; 16GB when using Fusion
• Blackmagic Design Desktop Video version 12.0 or later
• Integrated GPU or discrete GPU with at least 2GB of VRAM
• GPU that supports Metal or OpenCL 1.2

Minimum System Requirements for Windows

• Windows 10 Creators Update
• 16GB of system memory; 32GB when using Fusion
• Blackmagic Design Desktop Video 10.4.1 or later
• Integrated GPU or discrete GPU with at least 2GB of VRAM
• GPU that supports OpenCL 1.2 or CUDA 11
• NVIDIA/AMD/Intel GPU Driver version-as required by your GPU

Minimum System Requirements for Linux

• CentOS 7.3
• 32GB of system memory
• Blackmagic Design Desktop Video 10.4.1 or later
• Discrete GPU with at least 2GB of VRAM
• GPU that supports OpenCL 1.2 or CUDA 11
• NVIDIA/AMD Driver version as required by your GPU
