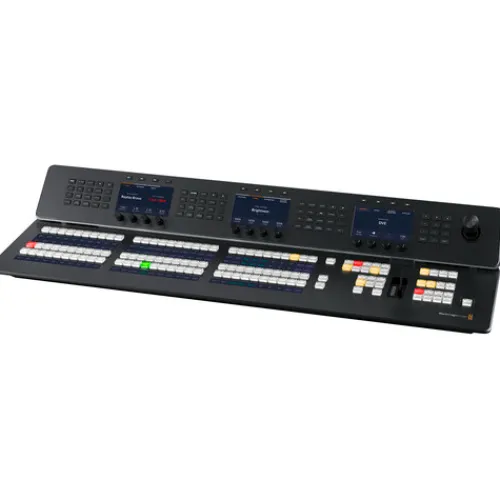

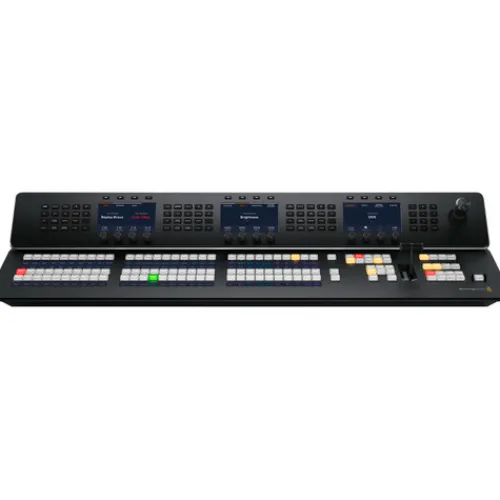

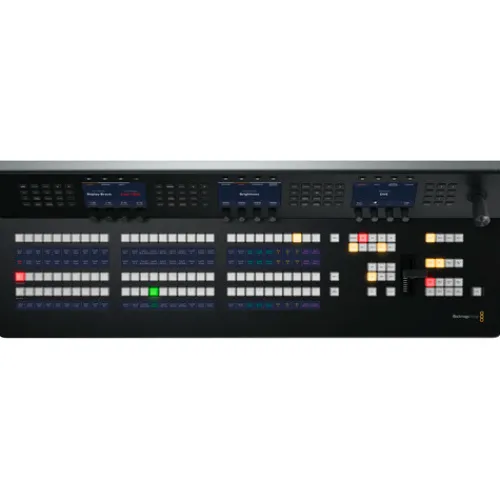

Blackmagic Design ATEM 1 M/E Advanced Panel 30

Control your BMD ATEM switcher with the ATEM 1 M/E Advanced Panel 30 from Blackmagic Design. This full-featured control panel is an essential companion for any ATEM switcher, offering tactile accessibility and three independent system control LCDs to effectively manage switching tasks during productions of any size. The panel’s four-port Ethernet connectivity at the rear ensures no additional network equipment is needed, allowing for seamless integration into even the most demanding live production environments.

The unit features a wide array of Colour backlit buttons, including 30 input buttons, and it has buttons for controlling up to four upstream and four downstream keyers as well as four M/E rows. A dynamic 3-axis joystick and an ergonomically designed T-bar facilitate precise, real-time DVE control with the T-bar, providing targeted adjustment prowess for wipes, fades, and other broadcast-quality transitions. In addition to allowing you to create adjustable auto transitions, the panel has a dedicated preview transition button and a single-button Fade to Black option that is applicable to the entire output, all at once.

Mains power is provided via an optional power cord connected to the IEC input, which also offers a second input option for redundant power. A built-in USB-C port is included for firmware updates. The compact panel design allows the unit to fit in standard equipment racks, so that it may be easily integrated in fly-away kits or broadcast trucks.

Switching Features

• 30 direct crosspoints
• 60 shifted crosspoints
• Tri-Colour LED crosspoint buttons
• 3 LCD menu displays
• 2 destination bus
• 2 source select bus
• Numeric keypad
