Key Features:

Simultaneous SDI to HDMI & HDMI to SDI
Supports up to DCI 2K60 Video
BMPCC Control & Tally via SDI Switcher
USB Power/SDI Re-Clocking/HDMI Timecode
Automatic Input Signal Detection
Embedded HDMI & SDI Input/Output
LED Video & Power Signal Indicators

Black Magic Micro Converter BiDirect SDI/HDMI 3G 20 Pack

Easily combine SDI and HDMI components in your video setup with the Micro Converter Bidirectional SDI/HDMI 3G from Blackmagic Design. This compact bidirectional converter can simultaneously convert SDI to HDMI and vice versa, even when using different standards, and it supports resolutions up to DCI 2K in SDI and 1080p60 in HDMI. It also offers camera control conversion for Blackmagic HDMI cameras like the BMPCC 4K or 6K, enabling you to use them with an SDI-based live switcher. The Micro Converter Bidirectional SDI/HDMI 3G features HDMI timecode support, SDI re-clocking for stability over long cable runs, support for a wide range of pro broadcast resolutions including cine-style 48 fps, and both HDMI and SDI embedded audio input and output.

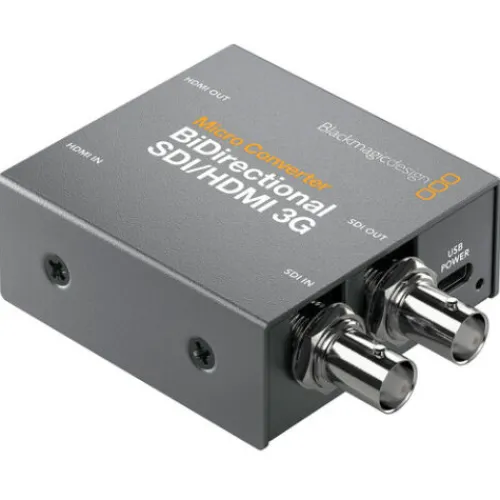

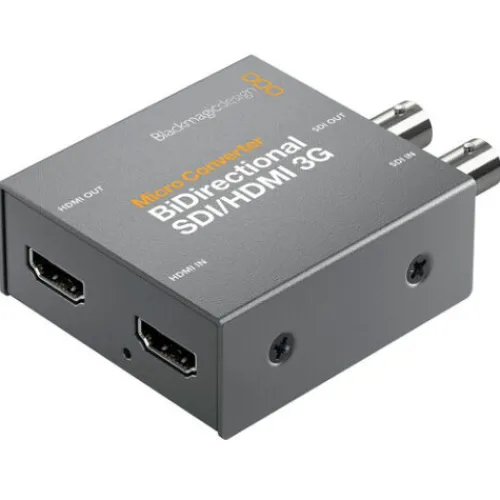

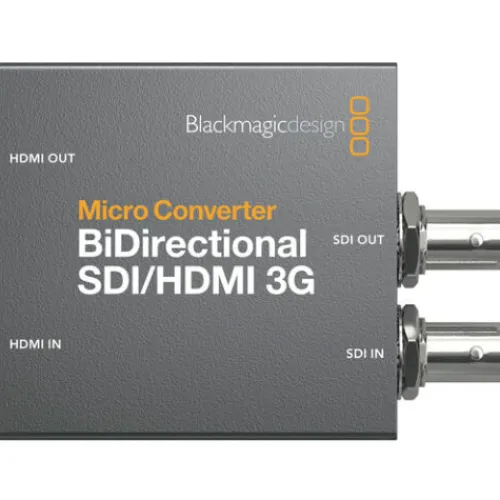

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the Bidirectional SDI/HDMI converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the separately available 100-240 VAC power supply, complete with four international socket adapters.

Compact, Rugged Design

Robust metal housing and rugged connectors.

USB Type-C port for powering via a compatible component like a monitor or laptop.

Updatable via the USB Type-C port and your Mac or PC.

Simultaneous Conversion

Use the bidirectional Micro Converter to convert HDMI to 3G-SDI and 3G-SDI to HDMI simultaneously.

Ideal for connecting HDMI consumer components to professional 3G-SDI equipment.

HDMI Camera Control

Camera control conversion for the HDMI-output BMPCC 4K or 6K, enables use with an SDI-based live switcher.

SDI & HDMI Timecode

HD and SD timecode support.

Converts HDMI timecode to SDI and vice versa.

SDI Re-Clocking

Built-in re-clocking on 3G-SDI output enables stable output over longer cable runs.

Compatible with SMPTE 259M/292M/296M/424M/425M level A and B.

Wider Resolution Support

SDI support from NTSC and PAL up to DCI 2Kp60.

HDMI support from NTSC and PAL up to 1080p60.

Embedded Audio

Supports embedded SDI and HDMI input and output.

LED Indicators

LED indicators for video and power signals.

Versatile Power Options

Power from a monitor, laptop, or other component using the USB Type-C port.

INPUTS/OUTPUTS

Video Inputs	1x BNC (3G-SDI)
	1x HDMI (2.0)
Video Outputs	1x BNC (3G-SDI)
	1x HDMI (2.0)
Other I/O	1x USB-C Input

FORMAT SUPPORT

Input Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV)
	DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	DCI 2KPsF at 25/29.97/30 fps
	1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1080PsF at 25/29.97/30 fps
	1080i at 50/59.94/60 fps
	720p at 50/59.94/60 fps
	480i / 525 lines at 59.94 fps
	576i / 625 lines at 50 fps
	HDMI (8/10-Bit 4:2:2 RGB, YUV)
	1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1080i at 50/59.94/60 fps
	720p at 50/59.94/60 fps
	480i / 525 lines at 29.97 fps
	576i / 625 lines at 25 fps
Output Video Format	SDI (8/10-Bit 4:2:2 RGB, YUV)
	DCI 2K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	DCI 2KPsF at 25/29.97/30 fps
	1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
	1080PsF at 25/29.97/30 fps
	1080i at 50/59.94/60 fps
	720p at 50/59.94/60 fps
	480i / 525 lines at 29.97 fps
	576i / 625 lines at 25 fps
Embedded Audio	HDMI/SDI

STANDARDS

Video Standard Compliance	SMPTE 259M/292M/296M/424M/425M-A/425M-B

HARDWARE

OS Compatibility	macOS 10.15
	macOS 11.1 or Later
	Windows 10 (64-Bit Only)

POWER

Power I/O	1x USB-C (4.4 to 5.2 VDC ) Input
Power Consumption	2.5 W

ENVIRONMENTAL

Operating Temperature	32 to 72°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%

GENERAL

Dimensions	7.95 x 4.57 x 2.48 cm
Weight	0.167 kg

* Specifications subject to change by the manufacturer without notice.
