Atomos Video Monitors & Accessories>Shinobi 7" 4K HDMI/SDI Monitor

Atomos Video Monitors & Accessories>Shinobi 7″ 4K HDMI/SDI Monitor

Original price was: $955.59.Current price is: $176.49.

SKU: SKU4FGdkvbQeY Categories: Pro Video, Video Accessories, Video Monitors & Accessories Tag: Atomos Brand: Atomos

Description
Reviews (0)

Key Features:

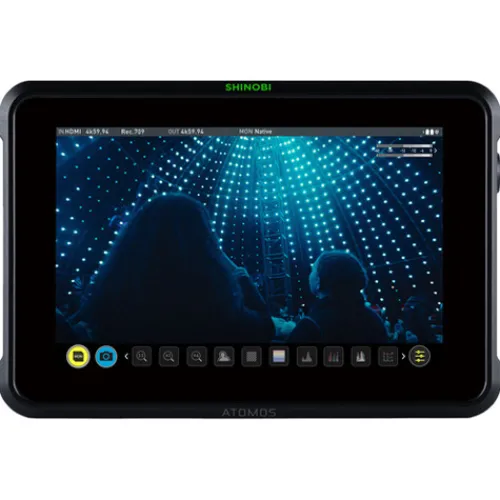

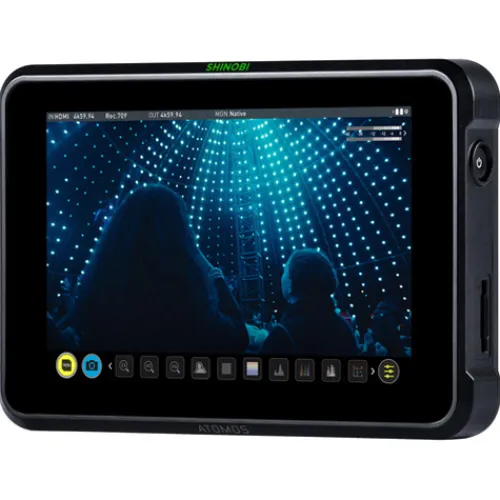

7″ 1920 x 1200 Touchscreen Display
4K60 HDMI 2.0 In/Out, 2K60 3G-SDI In/Out
2200 cd/m² Brightness
HDMI/SDI Cross Conversion
2.5mm Camera Control Port
Dual Sony L-Series Battery Slots
AtomOS; AtomHDR& 3D LUT Support
10-Stop Dynamic Range
Supports a Variety of Log Formats

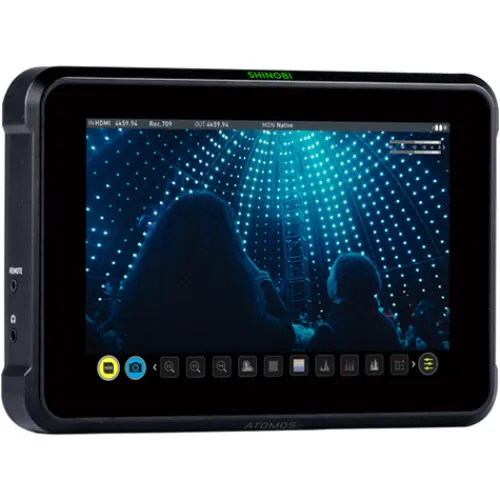

The Atomos Shinobi 7″ 4K HDMI/SDI is the ideal monitor for any content maker who wants total control over the image they’re capturing. The Shinobi 7, which is larger and brighter than its 5-inch counterpart, brings next-level display quality and control features to Atomos monitor-only line-up.

Big. Bright. Beautiful

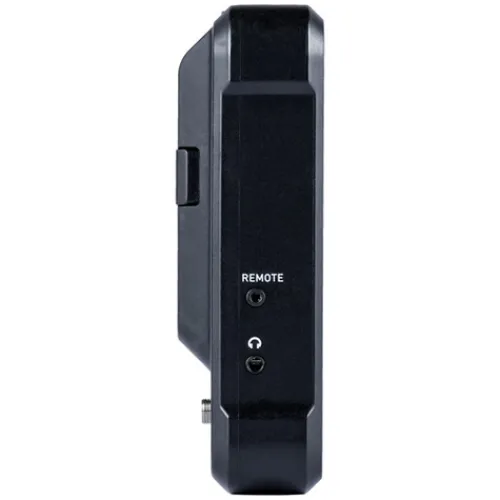

Shinobi 7 has a lightweight chassis and is designed to withstand the rigours of production. It is powered by a dual L-series battery plate or the included power adapter. With 2200 Nits of brightness and all of the on-screen monitoring features, it delivers outstanding image quality. Shinobi 7 includes a variety of ports for cross-conversion and camera control, as well as dual battery slots to enhance the battery life. Besides, it has a 2.5 mm Remote jack for supporting control of the Z Cam E2 range.

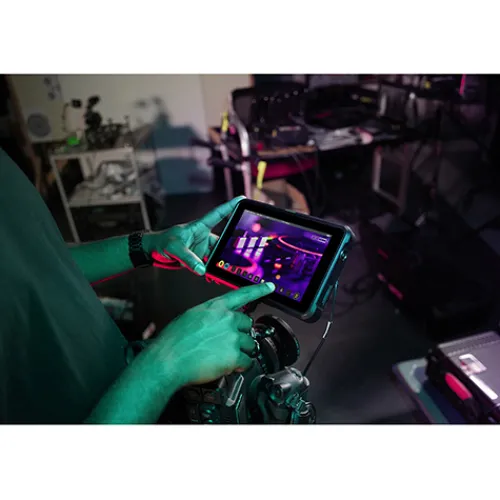

Camera controls at your fingertips

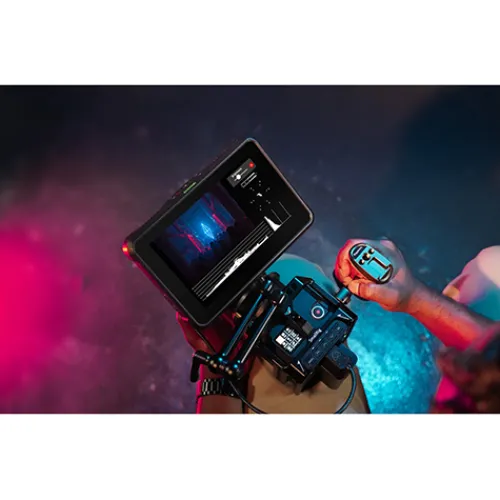

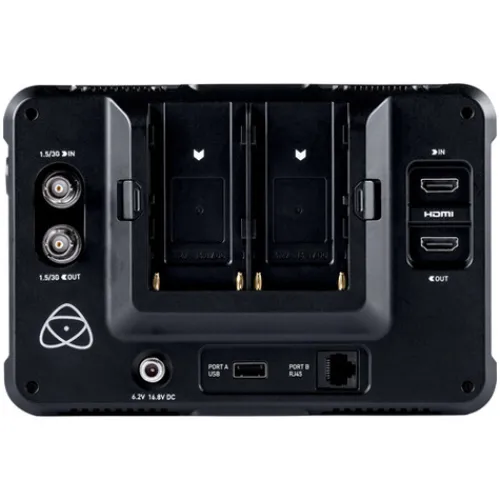

It employs HDMI 2.0 input and loop output up to 4K60, 3G-SDI input and loop output up to 2K60, a camera control port, signal cross conversion, dual L-series battery slots, and built-in USB & RJ45 ports for future support and control functionality. This touchscreen monitor is equipped with the most recent AtomOS firmware, which includes several onscreen analysis tools such as multi-scope views, RGB parade, framing, exposure, focus assist, waveform, and histogram tools.

Built-in 3D LUT box

The AtomHDR display technology enables you to precisely monitor your log gamma footage without having to view flat, washed-out images or use a LUT to compress the dynamic range and colour space. The Shinobi 7 has an SDI card input for loading custom 3D LUTs and supports both SDR and HDR viewing. More importantly, popular log formats from ARRI, Canon, Sony, Panasonic, RED, and JVC cameras are supported by the Shinobi 7.

More than just a monitor

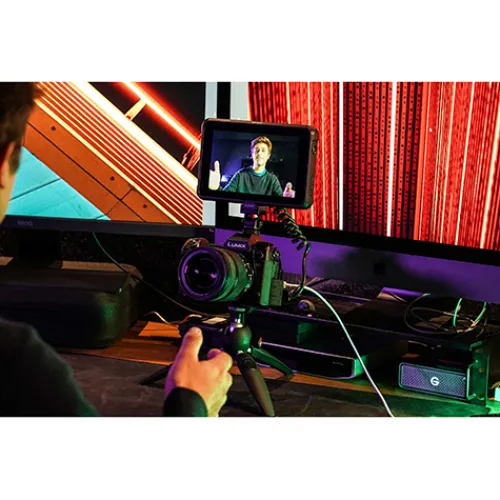

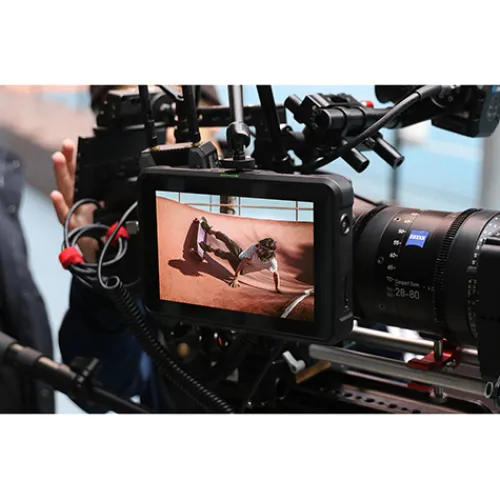

The Atomos Shinobi 7 is a great choice for anybody who is looking for a larger monitor for live monitoring such as focus pullers, influencers and Youtubers. It can be used with ‘box cameras’ without a monitor which have internal recording capabilities, as a director’s monitor for remote viewing as well as in various shooting scenarios such as underwater, and outdoor filming.

Dimensions (W x H x D mm)	198 x 133 x 39
Weight	577g / 1.04lb
Mount points	1 x Anti rotation 1/4″ / 3/8 top and bottom
Ambient operating temperature	Up to 40° C
Body	Polycarbonate ABS Plastic
Cooling	Actively controlled fan and heat sink
Multi-function button	Power / lock Screen
Power
Input voltage	6.2V – 16.8V
Operating power	5.8V – 7.2V
Compatible batteries	2 x NPF L series
Built in battery	No
Battery Run time (Record)	5200mAh – up to 2hrs, 7800mAh – up to 3hrs
Continuous power	Dual battery slots
DC in connector	Locking DC jack
Dtap	Via optional DTap to DC cable
Display
Touchscreen	SuperAtom IPS panel (capacitive touch)
Size	7″
Resolution	1920 x 1080
PPI	325
Bit depth	10-bit (8+2 FRC)
Backlight Type	Edge lit
Brightness (cdm2 / nits)	2200 +/- 10%
Aspect ratio	16:9 Image Display
Colour Gamut	Rec.709
Calibration support	Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)
Colour Pipeline
Gamma	Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log
Gamut	Bt2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut Rec709, JVC LS300, Red DragonColour / DragonColour2 / RedColour2 / RedColour3 / RedColour4 / RedWideGamut
3D LUT Display	.Cube Format
3D LUT Down Stream	Loop out
3DLUT 50/50	Yes
Monitoring Modes	Native / HLG / PQ / 3D LUT
HDR output Conversion	HLG / PQ
Video Input
HDMI	1 x HDMI (2.0) 4Kp60
SDI	1 x 3G SDI – 2k p60
Bit Depth	8/10-bit Video
Video Chroma Subsampling	YCbCr 420 & 422
Video Output
HDMI	1 x HDMI (2.0) 4Kp60
SDI Play out	1 x 3G SDI – 2Kp60
Video Signal Conversion
HDMI to SDI	Yes
SDI to HDMI	Yes
Audio In/Out
HDMI	2ch 24-bit, input dependent
SDI	8ch 24-bit, input dependent
Headphone out	3.5mm 2ch.
Timecode / Sync
Embedded	HDMI and SDI
Resolution and Frame Rates (Record, Monitor & Playback)
4k DCI	Monitor Only: DCI: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
4k UHD	Monitor Only: UHD: HDMI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
2K DCI 2046 x 1080	Monitor Only: DCI 2046 x 1080: SDI: 23.98p, 24p, 25p, 29.97p, 50p, 59.94p
FHD 1920 x 1080 Progressive	Monitor Only: HDMI and SDI : 23.98/24/25/29.9/30/50/59.94/60p
FHD 1920 x 1080 Interlaced	Monitor Only: 50/59.94/60i 1280 x 720p: 50/59.94/60p
Recording CODEC
CDNG	No – Monitor only
Apple ProRes RAW
Apple ProRes
Avid DNxHD
Avid DNxHR
H.265
H.264
Playback
Playlist	No – Monitor only
Recording functions
Pre-roll record	No – Monitor only
ISO Record
Switched Program Record
Timelapse
RAW to Video Record
Simultaneous proxy record
4k to HD
Supported media

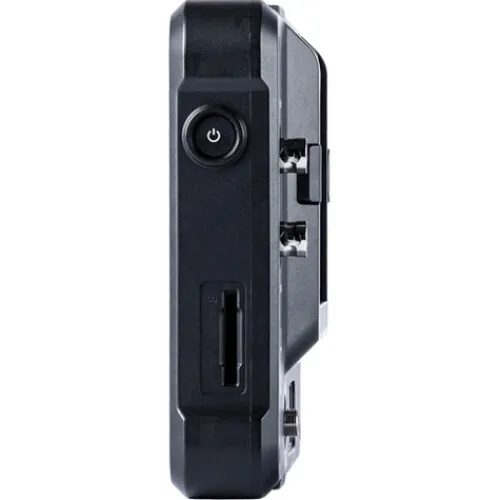

SD	SD Card slot for LUTs / Firmware
File System	ExFAT
On screen tools
MultiScope Analysis View	Image, selectable Waveform, Histogram, Vectorscopes and Audio bars
Waveform	Yes, 3 size / Position
Histogram	Luma and RGB
RGB parade	Yes, 3 size / position
Vector scope	Yes, 2 size / position and zoom
1 x Zoom	Yes. 1:1 Pixel mapping for 4K
2 x Zoom	Yes
4 x Zoom	Yes
Focus peaking	Colour selected / focus assist sharpening / threshold setting / Colour / mono / edges only
False colour	Yes
Zebra	Yes, adjustable
Isolate Colour channel	Blue only
Cine Frame Guides	2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Social Frame guides	9:16, 1:1, 191:1, 4:5
Safe areas	Action and Graphic
Grid markers	9 Grid
Anamorphic desqueeze	1.25x, 1.33x, 1.5x, 1.8x, 2x
Display Flip	Vertical and Horizontal selfie mode
Onboard Signal Processing
4K UHD Downscale for HD	Yes
DCI Crop	Yes
External Device Control
Serial 2.5mm Jack	USB-C to Serial (ATOMCAB018)
USB	Camera control for supported cameras in future firmware release
RJ45	Camera control for supported cameras in future firmware release
