3 Legged Thing Tripod Heads>AirHed Pro Lever – Darkness

3 Legged Thing AirHed Pro Lever Overview

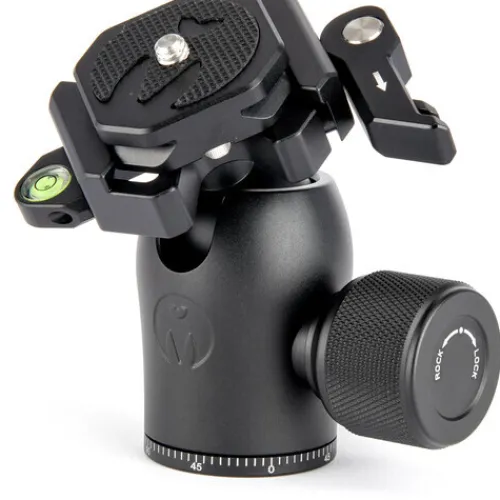

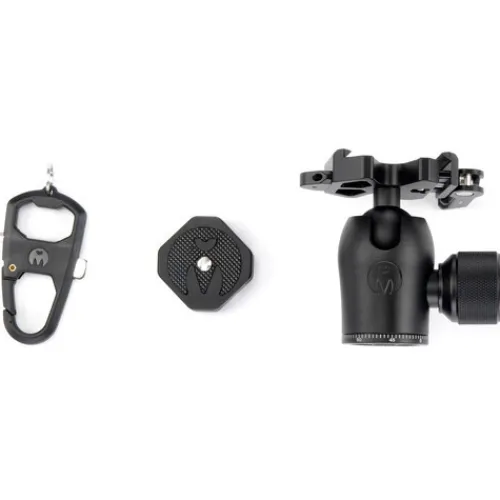

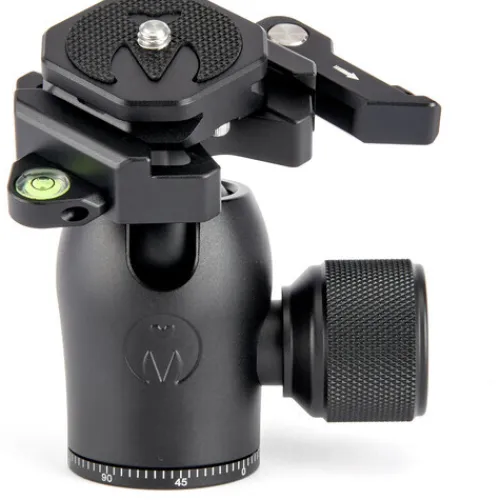

The 3 Legged Thing blackness AirHed Pro Lever Ball Head is an Arca-type ball head with a load capacity of 39.91 kg that can be attached to tripods or other support systems with a 3/8″ thread “-16 mount. Cameras and accessories that use a 1/4” thread The included QR-OCTA Quick Release Plate can be used to connect the -20 mount. Using the clamp’s push-and-pull cam lock lever, the quick release plate can be attached or removed from the integrated clamp located at the top of the head’s ball-and-socket joint. When opened, the lever can be rotated and flipped over so that the direction of the lever’s motion best suits either a right- or left-handed user when used to lock the clamp.

Dual retaining screws are included for use along the underside of the plate. These screws prevent the plate from accidentally sliding off the ball head when the clamp is opened. The quick release plate features a rubberized, non-slip platform while a built-in bubble level along the edge of the clamp opposite the cam lock lever accommodates landscape orientations.

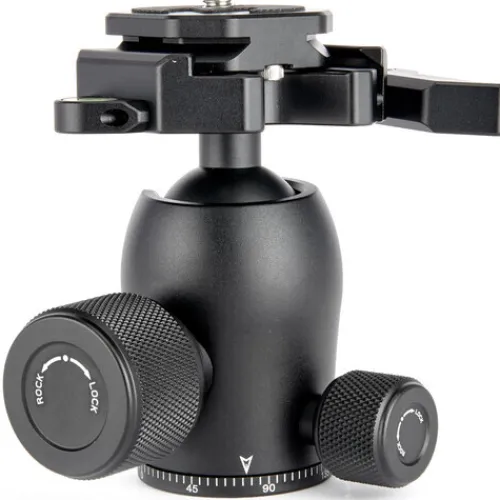

By loosening the ball head’s primary locking knob, the head’s ball-and-socket joint can be quickly swiveled, angled, fully tilted, or returned to its upright position. Under the primary locking knob is a secondary locking knob, which controls the ability to rotate the head 360°.

AirHed Pro Lever Ball Head

• Arca-type ball head with 39.91 kg load capacity
• Compatible with tripods or support systems that feature a 3/8″-16 mount
• Uses ball-and-socket joint to help maximize pan-and-tilt flexibility
• Ball-and-socket joint provides 360° of swivel control, is tiltable down to a 90° angle, and can be locked into place
• Large primary locking knob with knurled surface allows ball-and-socket joint to be quickly swiveled, angled, fully tilted, or returned to its upright position
• Secondary locking knob with knurled surface allows head to rotate 360°
• Integrated clamp on top of on the ball-and-socket joint is compatible with included QR-OCTA Quick Release Plate
• Push-and-pull cam lock lever to secure compatible Arca-type quick release plates within the integrated clamp
• When opened, cam lock lever can be rotated and flipped over so that when used to lock the clamp, the direction of the lever’s motion best suits either a right or left-handed user
• Built-in bubble level along the edge of the clamp opposite the cam lock lever accommodates landscape orientations
• Durable magnesium alloy construction

QR-OCTA Quick Release Plate

• Compatible with Arca-type quick release clamps
• 1/4″-20 mount
• Dual retaining screws along the underside of the plate prevent the plate from accidentally sliding off the AirHed Pro Lever Ball Head
• Durable, aluminum alloy construction
